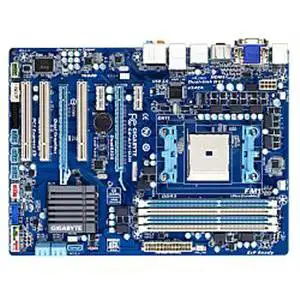

Matična ploča Gigabyte MB GA-A75-D3H S.FM1, AMD A75, DDR3/1866+, ATX, VGA/DVI, PCIe, CrossFir
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča Gigabyte MB GA-A75-D3H S.FM1, AMD A75, DDR3/1866+, ATX, VGA/DVI, PCIe, CrossFir
| Proizvođač: | Gigabyte |
| Šifra: | 0081255 |
| Kataloški broj: | GA-A75-D3H |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
CPU
- FM1 Socket: AMD A series & E2 series processors
CHIPSET
- AMD A75 chipset
MEMORY
- 4× 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory (due to Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than 4GB)
- Dual channel memory architecture
- Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules (the 1866MHz memory speed is supported only when one or two DDR3 1866MHz DIMMs are installed - It is not supported when four DIMMs are installed - Dual channel memory mode must be enabled when installing two DIMMs)
ONBOARD GRAPHICS
- APU:
* 1× D-Sub port
* 1× DVI-D port, supporting a max. resolution of 2560×1600 (the DVI-D port does not support D-Sub connection by adapter - the resolution of 2560×1600 is supported only when Dual Link DVI mode is enabled)
* 1× HDMI port, supporting a max. resolution of 1920×1200
(All integrated graphics ports do not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first)
AUDIO
- Realtek ALC889 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for Dolby Home Theater
- Support for S/PDIF Out
LAN
- 1× Realtek RTL8111E chip (10/100/1000 Mbit)
EXPANSION SLOTS
1× PCI Express x16 slot, running at x16 (PCIEX16) (for optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot)
1× PCI Express x16 slot, running at x4 (PCIEX4)
2× PCI Express x1 slots
* All PCI Express slots conform to the PCI Express 2.0 standard
3× PCI slots
MULTI-GRAPHICS TECHNOLOGY
- Support for AMD Dual Graphics technology
* Only A series APU support AMD Dual Graphics
- Support for AMD CrossFireX technology
STORAGE INTERFACE
- Chipset:
* 5× SATA 6Gb/s connectors supporting up to 5 SATA 6Gb/s devices
* 1× eSATA 6Gb/s port on the back panel supporting up to 1 SATA 6Gb/s device (actual transfer rate is dependent on the device being connected)
* Support for RAID 0, RAID 1, RAID 10, and JBOD
USB
- Chipset:
* Up to 10× USB 2.0/1.1 ports (2 ports on the back panel, 8 ports available through the internal USB headers)
* Up to 4× USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- Etron EJ168 chips: Up to 2 USB 3.0/2.0 ports on the back panel
INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 8-pin ATX 12V power connector
5× SATA 6Gb/s connectors
1× APU fan header
2× system fan headers
1× power fan header
1× front panel header
1× front panel audio header
1× S/PDIF Out header
4× USB 2.0/1.1 headers
1× USB 3.0/2.0 header
1× serial port header
1× Trusted Platform Module (TPM) header
1× clearing CMOS jumper
BACK PANEL CONNECTORS
1× PS/2 keyboard/mouse port
1× D-Sub port
1× DVI-D port
1× HDMI port
1× optical S/PDIF Out connector
2× USB 2.0/1.1 ports
4× USB 3.0/2.0 ports
1× eSATA 6Gb/s port
1× RJ-45 port
6× audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O CONTROLLER
- iTE IT8720 chip
H/W MONITORING
- System voltage detection
- APU/System temperature detection
- APU/System/Power fan speed detection
- APU overheating warning
- APU/System/Power fan fail warning
- APU/System fan speed control (whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install)
BIOS
- 2× 32 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
UNIQUE FEATURES
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune (available functions in EasyTune may differ by motherboard model)
- Support for Smart Recovery
- Support for Auto Green
- Support for ON/OFF Charge
- Support for 3TB+ Unlock
- Support for Q-Share
OPERATING SYSTEM
- Support for Microsoft Windows 7/Vista/XP
FORM FACTOR
- ATX Form Factor (30.5×22.5 cm)
| Osnovne karakteristike | |
|---|---|
| Socket: | FM1 |
| Format ploče: | ATX |
| Memorija: | DDR3 |
| Broj utora: | 4 |
| Max. memorije [GB]: | 64 |
| Takt memorije [MHz]: | 2400 |
| Mreža: | 1x 10/100/1000 Ethernet |
| Utori | |
| PCI: | 3 |
| PCIe x1: | 2 |
| PCIe x16: | 2 |
| SATA: | 5 x SATA 6Gb/s, 1 x eSATA 6Gb/s |
| Konektori | |
| 24-pin ATX Power: | Da |
| 8-pin ATX 12V Power: | Da |
| CPU Fan Power: | Da |
| Chasis Fan Power: | Da |
| USB 2.0: | 4 |
| USB 3.0: | 1 |
| S/PDIF Out: | Da |
| Front panel audio: | Da |
| Stražnji panel | |
| D-Sub (VGA): | Da |
| DVI: | Da |
| HDMI: | Da |
| PS/2 keyboard: | Da |
| USB 2.0: | 2 |
| USB 3.0: | 4 |
| RJ45: | Da |
| eSATA: | Da |
| Audio: | 7.1- kanalni audio |
| Ostale karakteristike | |
| Ostalo: | Support for AMD Dual Graphics technology, |
