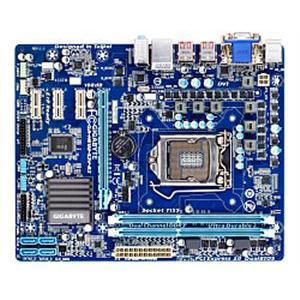

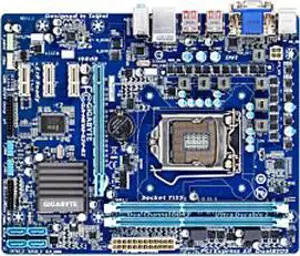

Matična ploča Gigabyte MB GA-H61M-S2V-B3, S1155, iH61, DDR3/1333, mATX, PCIe, VGA, S-ATA3/S-ATAII, G
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča Gigabyte MB GA-H61M-S2V-B3, S1155, iH61, DDR3/1333, mATX, PCIe, VGA, S-ATA3/S-ATAII, G
| Proizvođač: | Gigabyte |
| Šifra: | 0081245 |
| Kataloški broj: | GA-H61M-S2V-B3 |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
CPU
- Support for Intel Core i7/Intel Core i5/Intel Core i3/Intel Pentium/Intel Celeron processors in the LGA1155 package
- L3 cache varies with CPU
CHIPSET
- Intel H61 Express Chipset
MEMORY
- 2× 1.5V DDR3 DIMM sockets supporting up to 16GB of system memory (due to Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than 4GB)
- Dual channel memory architecture
- Support for DDR3 1333/1066/800 MHz memory modules
- Support for non-ECC memory modules
ONBOARD GRAPHICS
- Integrated in the Chipset:
* 1× D-Sub port
* 1× DVI-D port, supporting a max. resolution of 1920×1200 (the DVI-D port does not support D-Sub connection by adapter)
AUDIO
- Realtek ALC889 codec
- High Definition Audio
- 2/4/5.1/7.1-channel (to configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver)
LAN
- 1× Realtek RTL8111E chip (10/100/1000 Mbit)
EXPANSION SLOTS
1× PCI Express x16 slot, running at x16
3× PCI Express x1 slots
* All PCI Express slots conform to PCI Express 2.0 standard
USB
- Chipset: Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)
INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 4-pin ATX 12V power connector
4× SATA 3Gb/s connectors
1× CPU fan header
1× system fan header
1× front panel header
1× front panel audio header
2× USB 2.0/1.1 headers
1× parallel port header
1× serial port header
1× power LED header
1× chassis intrusion header
1× clearing CMOS jumper
BACK PANEL CONNECTORS
1× PS/2 keyboard port
1× PS/2 mouse port
1× D-Sub port
1× DVI-D port
6× USB 2.0/1.1 ports
1× RJ-45 port
3× audio jacks (Line In/Line Out/Microphone)
I/O CONTROLLER
- iTE IT8728 chip
H/W MONITORING
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control (whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install)
BIOS
- 2× 32 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
UNIQUE FEATURES
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune (available functions in EasyTune may differ by motherboard model)
- Support for Smart 6
- Support for Auto Green
- Support for ON/OFF Charge
- Support for Cloud OC
- Support for Q-Share
OPERATING SYSTEM
- Support for Microsoft Windows 7/Vista/XP
FORM FACTOR
- Micro ATX Form Factor (24.4×19.5 cm)
| Osnovne karakteristike | |
|---|---|
| Socket: | 1155 |
| Format ploče: | ATX |
| Memorija: | DDR3 |
| Broj utora: | 2 |
| Max. memorije [GB]: | 16 |
| Takt memorije [MHz]: | 1333 |
| Mreža: | 1x 10/100/1000 Ethernet |
| Utori | |
| PCIe x1: | 3 |
| PCIe x16: | 1 |
| SATA: | 4 x SATA 3Gb/s |
| Konektori | |
| 24-pin ATX Power: | Da |
| 4-pin ATX 12V Power: | Da |
| CPU Fan Power: | Da |
| Chasis Fan Power: | Da |
| USB 2.0: | 2 |
| Front panel audio: | Da |
| Stražnji panel | |
| D-Sub (VGA): | Da |
| DVI: | Da |
| PS/2 keyboard: | Da |
| PS/2 mouse: | Da |
| USB 2.0: | 6 |
| RJ45: | Da |
| Audio: | 7.1- kanalni audio |
