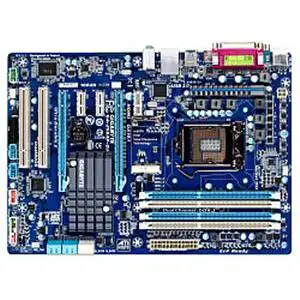

Matična ploča Gigabyte MB GA-Z68AP-D3, S1155, iZ68, DDR3/2133, PCIe, VGA/HDMI, S-ATAII/S-ATA3, RAID,
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča Gigabyte MB GA-Z68AP-D3, S1155, iZ68, DDR3/2133, PCIe, VGA/HDMI, S-ATAII/S-ATA3, RAID,
| Proizvođač: | Gigabyte |
| Šifra: | 0081243 |
| Kataloški broj: | GA-Z68AP-D3 |
| Jamstvo: | 36 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
CPU
- Support for Intel Core i7/Intel Core i5/Intel Core i3/Intel Pentium/Intel Celeron processors in the LGA1155 package
- L3 cache varies with CPU
CHIPSET
- Intel Z68 Express Chipset
MEMORY
- 4× 1.5V DDR3 DIMM sockets supporting up to 32GB of system memory (duo to Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than 4GB)
- Dual channel memory architecture
- Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
ONBOARD GRAPHICS
- Integrated in the Chipset: 1× HDMI port, supporting a maximum resolution of 1920×1200
AUDIO
- Realtek ALC889 codec
- High Definition Audio
- 2/4/5.1/7.1-channel (to configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver)
- Support for S/PDIF Out
LAN
- 1× Realtek RTL8111E chip (10/100/1000 Mbit)
EXPANSION SLOTS
1 x PCI Express x16 slot, running at x16 (PCIEX16) (For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot)
1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 slot or the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode)
3× PCI Express x1 slots (All PCI Express slots conform to PCI Express 2.0 standard)
2× PCI slots
MULTI-GRAPHICS TECHNOLOGY
- Support for AMD CrossFireX technology (the PCIEX16 slot operates at up to x4 mode when AMD CrossFireX is enabled)
STORAGE INTERFACE
- Chipset:
* 2× SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
* 4× SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices (the SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive)
* Support for RAID 0, RAID 1, RAID 5, and RAID 10 (when a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected)
USB
- Chipset: Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
- Etron EJ168 chip: Up to 2 USB 3.0/2.0 ports on the back panel
INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 4-pin ATX 12V power connector
2× SATA 6Gb/s connectors
4× SATA 3Gb/s connectors
1× mSATA connector
1× CPU fan header
2× system fan headers
1× power fan header
1× front panel header
1× front panel audio header
1× S/PDIF Out header
3× USB 2.0/1.1 headers
1× clearing CMOS jumper
1× Trusted Platform Module (TPM) header
BACK PANEL CONNECTORS
1× PS/2 keyboard/mouse port
1× parallel port
1× serial port
1× optical S/PDIF Out connector
1× HDMI port
4× USB 2.0/1.1 ports
2× USB 3.0/2.0 ports
1× RJ-45 port
3× audio jacks (Line In/Line Out/Microphone)
I/O CONTROLLER
- iTE IT8728 chip
H/W MONITORING
- System voltage detection
- CPU/System temperature detection
- CPU/System/Power fan speed detection
- CPU overheating warning
- CPU/System/Power fan fail warning
- CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install
BIOS
- 2× 32 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
UNIQUE FEATURES
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune (available functions in EasyTune may differ by motherboard model)
- Support for Smart 6
- Support for Auto Green
- Support for eXtreme Hard Drive (X.H.D)
- Support for ON/OFF Charge
- Support for Cloud OC
- Support for 3TB+ Unlock
- Support for TouchBIOS
- Support for Q-Share
OPERATING SYSTEM
- Support for Microsoft Windows 7/ Vista / XP
FORM FACTOR
- ATX Form Factor (30.5×21.5 cm)
| Osnovne karakteristike | |
|---|---|
| Socket: | 1155 |
| Format ploče: | ATX |
| Memorija: | DDR3 |
| Broj utora: | 4 |
| Max. memorije [GB]: | 32 |
| Takt memorije [MHz]: | 2133 |
| Mreža: | 1x 10/100/1000 Ethernet |
| Utori | |
| PCI: | 2 |
| PCIe x1: | 3 |
| PCIe x16: | 2 |
| SATA: | 2 x SATA 6Gb/s, 4 x SATA 3Gb/s |
| Konektori | |
| 24-pin ATX Power: | Da |
| 4-pin ATX 12V Power: | Da |
| CPU Fan Power: | Da |
| Chasis Fan Power: | Da |
| USB 2.0: | 3 |
| S/PDIF Out: | Da |
| Front panel audio: | Da |
| Stražnji panel | |
| Serial: | Da |
| Parallel: | Da |
| HDMI: | Da |
| PS/2 keyboard: | Da |
| USB 2.0: | 4 |
| USB 3.0: | 2 |
| RJ45: | Da |
| Audio: | 7.1- kanalni audio |
| Ostale karakteristike | |
| Ostalo: | Support for AMD CrossFireX™ technology |
