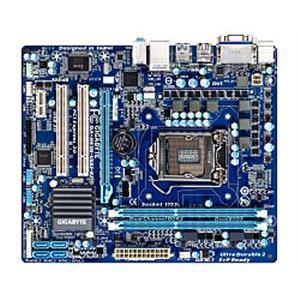

Matična ploča Gigabyte MB H61M-USB3-B3, S.1155, iH61, DDR3/1333, PCIe, VGA, S-ATAII, G-LAN, USB3.0,
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča Gigabyte MB H61M-USB3-B3, S.1155, iH61, DDR3/1333, PCIe, VGA, S-ATAII, G-LAN, USB3.0,
| Proizvođač: | Gigabyte |
| Šifra: | 0081146 |
| Kataloški broj: | GA-H61M-USB3-B3 |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
CPU
- Support for an Intel Core i7 series/Intel Core i5 series/Intel Core i3 series/Intel Pentium/Intel Celeron processors in the LGA1155 package
- L3 cache varies with CPU
CHIPSET
- Intel H61 Express Chipset
MEMORY
- 2× 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (due to Windows 32-bit operating system limitation, when more than 4GB of physical memory is installed, the actual memory size displayed will be less than 4GB)
- Dual channel memory architecture
- Support for DDR3 1333/1066/800 MHz memory modules
- Support for non-ECC memory modules
ONBOARD GRAPHICS
- Integrated in the Chipset:
* 1× D-Sub port
* 1× DVI-D port, supporting a maximum resolution of 1920×1200 (the DVI-D port does not support D-Sub connection by adapter)
AUDIO
- Realtek ALC889 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN
- 1× Atheros AR8151 chip (10/100/1000 Mbit)
EXPANSION SLOTS
1× PCI Express x16 slot, running at x16 (PCIEX16)
1× PCI Express x1 slot
2× PCI slots
STORAGE INTERFACE
- Chipset: 4× SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
USB
- Chipset: Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
- Etron EJ168 chip: Up to 2 USB 3.0/2.0 ports on the back panel
INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 4-pin ATX 12V power connector
4× SATA 3Gb/s connectors
1× CPU fan header
1× system fan header
1× front panel header
1× front panel audio header
2× USB 2.0/1.1 headers
1× parallel port
1× serial port
1× clearing CMOS jumper
BACK PANEL CONNECTORS
1× PS/2 keyboard port
1× PS/2 mouse port
1× D-Sub port
1× DVI-D port
4× USB 2.0/1.1 ports
2× USB 3.0/2.0 ports
1× RJ-45 port
3× audio jacks (Line In/Line Out/Microphone)
I/O CONTROLLER
- iTE IT8728 chip
H/W MONITROING
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System fan speed control
BIOS
- 2× 32 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
UNIQUE FEATURES
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune (available functions in EasyTune may differ by motherboard model)
- Support for Smart 6
- Support for Auto Green
- Support for ON/OFF Charge
- Support for Cloud OC
- Support for Q-Share
OPERATING SYSTEM
- Support for Microsoft Windows 7/Vista/XP
FORM FACTOR
- Micro ATX Form Factor (24.4×20.5 cm)
| Osnovne karakteristike | |
|---|---|
| Socket: | 1155 |
| Format ploče: | mATX |
| Memorija: | DDR3 |
| Broj utora: | 2 |
| Max. memorije [GB]: | 16 |
| Takt memorije [MHz]: | 1333 |
| Mreža: | 1x 10/100/1000 Ethernet |
| Utori | |
| PCI: | 2 |
| PCIe x1: | 1 |
| PCIe x16: | 1 |
| SATA: | 4 x SATA 3Gb/s |
| Konektori | |
| 24-pin ATX Power: | Da |
| 4-pin ATX 12V Power: | Da |
| CPU Fan Power: | Da |
| Chasis Fan Power: | Da |
| USB 2.0: | 2 |
| Front panel audio: | Da |
| Stražnji panel | |
| D-Sub (VGA): | Da |
| DVI: | Da |
| PS/2 keyboard: | Da |
| PS/2 mouse: | Da |
| USB 2.0: | 4 |
| USB 3.0: | 2 |
| RJ45: | Da |
| Audio: | 7.1- kanalni audio |
