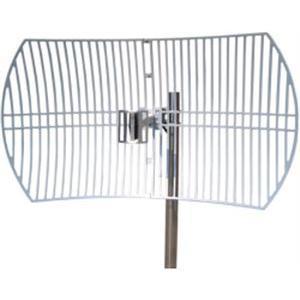

TP-Link TL-ANT2424B Outdoor Grid Antenna 24dBi (2.4GHz), N Female connector

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili TP-Link TL-ANT2424B Outdoor Grid Antenna 24dBi (2.4GHz), N Female connector

  large-image
TP-Link TL-ANT2424B Outdoor Grid Antenna 24dBi (2.4GHz), N Female connector
Kliknite na sliku za povećanje
thumb thumb
Proizvođač: TP-Link
Šifra: 0230126
Kataloški broj: TL-ANT2424B
Jamstvo: 36
Prosječna ocjena: Ocjena 5 5,00 | Glasova: 3
  Ocijeni ovaj proizvod


Features
- Compliant with 802.11b/g
- 24dBi signal gain
- N Female connector

Specifications
- Frequency Range: 2.4GHz - 2.4835GHz
- Impedance: 50 Ohm
- Gain: 24dBi
- VSWR: ?1.5
- Horizontal Beamwidth: 14 degree
- Vertical Beamwidth: 10 degree
- F/B Ratio: >30dB
- Polarization: Vertical or Horizontal
- max. Input Power: 100W
- Connector: N Female
- Application: Outdoor
- Mount Style: Pole Mount / Wall Mount
- Antenna Dimension: 600×1000 mm
- Weight: 3.5 +/-0.15 KG
- Mounting Mast Diameter: O30-O50 mm
- Rated Wind Velocity: 216 km/h

Osnovne karakteristike
Frekvencija [GHz]: 2.4
Pojacanje [dBi]: 24


*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja[o]protis.hr
Komentar
Datum: 14. studenog 2012.
Autor: cola
Ocjena 5
Datum: 14. studenog 2012.
Autor: ivo7
Ocjena 5
Datum: 5. studenog 2012.
Autor: Jura
Ocjena 5
Pozitivno cijena, kvaliteta, domet
Negativno nema
Negativno najbolji omjer uloženo-dobiveno
