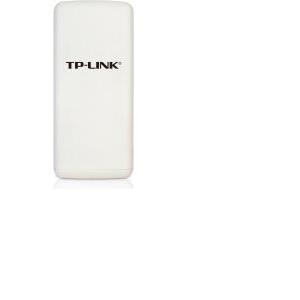

TP-Link TL-WA5210G Wireless High Power Outdoor Access Point 54Mbps (2.4GHz), 802.11g/b, Passive PoE Supported, WISP Client Router, Atheros, 1 12dbi directional antenna

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili TP-Link TL-WA5210G Wireless High Power Outdoor Access Point 54Mbps (2.4GHz), 802.11g/b, Passive PoE Supported, WISP Client Router, Atheros, 1 12dbi directional antenna

  large-image
TP-Link TL-WA5210G Wireless High Power Outdoor Access Point 54Mbps (2.4GHz), 802.11g/b, Passive PoE Supported, WISP Client Router, Atheros, 1 12dbi directional antenna
Kliknite na sliku za povećanje
thumb thumb thumb
Proizvođač: TP-Link
Šifra: 0020120
Kataloški broj: TL-WA5210G
Jamstvo: 24
Prosječna ocjena: Ocjena 5 5,00 | Glasova: 2
  Ocijeni ovaj proizvod


Features
- Complies with IEEE 802.11b/g, wireless speed up to 54Mbps
- High output transmission power and reception sensitivity optimized
- 12dBi dual-polarized directional antennas fit for various environments and boost your signal level
- Weatherproof enclosure and lightning protection terminal integrated
- Supports WISP Mode
- Up to 60 meters (200 feet) of flexible deployment with included Power over Ethernet Injector
- Support 15kV ESD Protection
- Support 4000V Lightning Protection
- Supports AP Client Router, AP Router and AP operation mode
- Distance Adjustment for long range transmission, up to 50km
- Supports Antenna Alignment
- Supports Layer 2 User Isolation
- Provides throughput monitor indicating the current wireless throughput.
- Supports Ping Watch Dog
- Supports Wireless Speed Test
- Supports SNMP, Remote Management
- Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
- Provides external RP-SMA connector for higher gain antenna upgrade

Specification
HARDWARE FEATURES
- Interface:
* 1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE)
* 1 External Reverse SMA Connector One Grounding Terminal
- Button: Reset Button
- External Power Supply: 12VDC / 1.0A Linear PSU
- Wireless Standards: IEEE 802.11g, IEEE 802.11b
- Antenna: 12dBi Dual-Polarized Directional Antenna
- Dimensions (W×D×H): 265×120×83 mm
- Antenna Beamwidth: Horizontal: 60 degree - Vertical: 30 degree
- Protection:
* 15kV ESD Protection,
* 4000V Lightning Protection
* Grounding Terminal Integrated

WIRELESS FEATURES
- Frequency: 2.4 - 2.4835GHz
- Signal Rate:
* 11g: Up to 54Mbps (dynamic)
* 11b: Up to 11Mbps (dynamic)
- EIRP:
* <20dBm (EIRP, For countries using CE Standards)
* <27dBm (Peak Output Power, For countries using FCC Standards)
- Reception Sensitivity: 802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm
- Wireless Modes: AP Router Mode AP Client Router Mode (WISP Client) AP/Client/WDS Bridge/Repeater mode
- Wireless Functions: WDS Bridge, Wireless Statistics
- Wireless Security: SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
- Wireless Range: 15 km with Integrated Antenna 50km Maximum (High gain directional antenna required)
- Advanced Functions:
* Up to 60 meters PoE is supported
* Provides 4-level signal LED indicator

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:
* TL-WA5210G
* Power Supply Unit
* Power Injector
* Resource CD
* Quick Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
- Environment:
* Operating Temperature: -30C - 70C (-22F-158F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 95% non-condensing

Kliknite za više informacija o proizvodu

Za odabrani proizvod nije definirana specifikacija.

Komentar
Datum: 8. travnja 2014.
Autor: Tonči
Ocjena 5
Pozitivno Poe, konfiguracija, radi kroz više zidova
Negativno POE na više od cca 30 metara ne radi
Negativno Nisam još testirao p2p. Radi dosta dobro kada ju se montira ispred zgrade i kroz jedan zid je to sve ok.
Datum: 20. siječnja 2014.
Autor: Igor, Orašje
Ocjena 5
Pozitivno web sučelje, POE (duljina kabla do 15m)
Negativno POE ne radi sa kablom od 30m, a specifikacija kaže do 60m? možda je do kabla..
Negativno p2p link (dva ova uređaja) cca. 600m - skoro optička vidljivost - link kroz par krovova 15/9Mbit stabilno.
