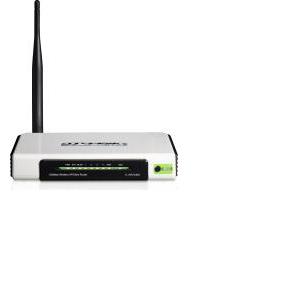

TP-Link TL-WR743ND Wireless Lite N Router 150Mbps (2.4GHz), compatible with 802.11n/g/b, Built-in 4-port Switch, Passive PoE Supported, integrated SPI firewall and access control, detachable antenna
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili TP-Link TL-WR743ND Wireless Lite N Router 150Mbps (2.4GHz), compatible with 802.11n/g/b, Built-in 4-port Switch, Passive PoE Supported, integrated SPI firewall and access control, detachable antenna
| Proizvođač: | TP-Link |
| Šifra: | 0180234 |
| Kataloški broj: | TL-WR743ND |
| Jamstvo: | 12 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
Features
- 150Mbps wireless data transfer ideal for lag-free video streaming, online gaming and Internet calling
- AP Client Router Mode supports WISP Internet connection, allowing users to share an Internet connection wirelessly or via cables
- WAN Port supports up to 30 meters (100 feet) of Passive Power over Ethernet
- Easily set up powerful and robust security at a push of the QSS button
- WDS wireless bridge provides seamless bridging to expand the wireless network
- IP QoS ensures smooth video streaming or lag-free online gaming experience
- Built-in NAT and DHCP servers support static IP address distribution
- Supports PPPOE, Dynamic IP, Static IP, L2TP, PPTP, BigPond Cable Internet access
- Supports Virtual Server, DMZ, UPnP, DDNS, Static Routing, VPN Pass-through
- Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) authentication
- Supports configuration backup/restore and firmware upgrades
- Fully compatible with all IEEE 802.11 b/g/n products
- Detachable antenna allows for stronger antenna upgrades (RP-SMA connector)
Specification
HARDWARE FEATURES
- Interface:
4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
- Button:
* Quick Setup Security Button (WPS Compatible)
* Reset Button
* Power On/Off Button
- External Power Supply: 9VDC / 0.85A
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Antenna: 5dBi Detachable Omni Directional (RP-SMA)
- Dimensions (W×D×H): 174×111×30 mm
WIRELESS FEATURES
- Frequency: 2.4 - 2.4835GHz
Signal Rate:
* 11n: Up to 150Mbps (dynamic)
* 11g: Up to 54Mbps (dynamic)
* 11b: Up to 11Mbps (dynamic)
- EIRP: < 20dBm(EIRP)
- Reception Sensitivity:
* 130M: -68dBm@10% PER
* 108M: -68dBm@10% PER
* 54M: -68dBm@10% PER
* 11M: -85dBm@8% PER
* 6M: -88dBm@10% PER
* 1M: -90dBm@8% PER
- Wireless Modes: AP Client Router / AP Router Mode
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Quality of Service: WMM, Bandwidth Control
- Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, Comexe, NO-IP
- VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
- Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
- Firewall Security:
* DoS, SPI Firewall
* IP Address Filter/MAC Address Filter/Domain Filter
* IP and MAC Address Binding
- Management: Access Control, Local Management, Remote Management
OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:
* TL-WR743ND
* 1 detachable Omni directional antenna
* Power Injector
* Power supply unit
* Resource CD
* Quick Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
