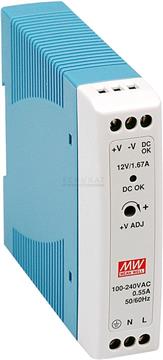

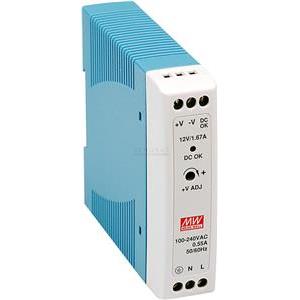

Adapter switch. za šinu DC 12 V 20W MDR-20-12
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Adapter switch. za šinu DC 12 V 20W MDR-20-12
| Proizvođač: | Ecovision |
| Šifra: | 1321134 |
| Kataloški broj: | MDR-20-12 |
| Jamstvo: | 12 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
• Direct assembly on DIN Rail
• Enclosed case, Touch-guard screw terminals
• Universal input
• Overload protection, current limiting, auto recovery
• Protections: short circuit/over load/over voltage
• Power-on LED display
• Low no load power consumption
• DC OK relay contact
Technical Specifications
Input Voltage: 85...264V AC (47...63Hz),
120...370V DC
Input Inrush Current, Max.: 40A
Leakage Current, Max.: 1mA
Output Voltage Adjustment: ±10%
No Load Power Consumption, Max.: 0,75W
Over Load Protection: 105...160%
Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 2000V AC
O/P-FG: 500V AC
Operating Temperature: -20...+70°C
Weight: 190g
I/P = Input, O/P = Output, FG = Frame Ground
Part Nr. UA IA PA DUA URN h
[V] [A] [W] [%] [mVp-p] [%]
MDR-20-5 5 0...3 15 2 80 76
MDR-20-12 12 0...1,67 20 1 120 80
MDR-20-15 15 0...1,34 20 1 120 81
MDR-20-24 24 0...1 24 1 150 84
UA = Output Voltage, IA = Output Current Range, PA = Output Power,
DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency
