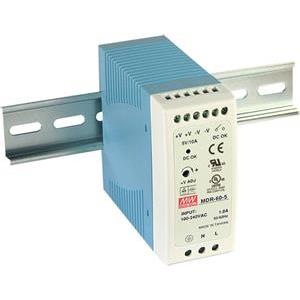

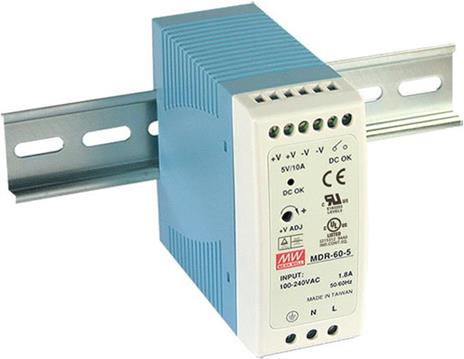

Adapter switch. za šinu DC 12 V 5,0A MDR-60-12
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Adapter switch. za šinu DC 12 V 5,0A MDR-60-12
| Proizvođač: | Meanwell |
| Šifra: | 1321135 |
| Kataloški broj: | MDR-60-12 |
| Jamstvo: | 12 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
• Direct assembly on DIN Rail
• Enclosed case, Touch-guard screw terminals
• Universal input
• Overload protection, current limiting, auto recovery
• Protections: short circuit/over load/over voltage
• Power-on LED display
• Low no load power consumption
• DC OK relay contact
tehnički podaci:
-Input Voltage: 85...264V AC (47...63Hz)
120...370V DC
Input Inrush Current, Max.: 60A
Leakage Current, Max.: 1mA
Output Voltage Adjustment: +20%
No Load Power Consumption, Max.: 0,75W
Over Load Protection: 105...150%
Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 2000V AC
O/P-FG: 500V AC
Operating Temperature: -20...+70°C
Weight: 330g
