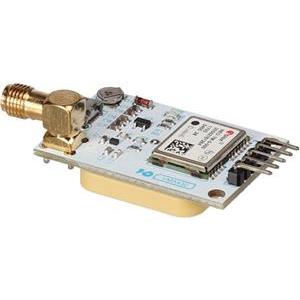

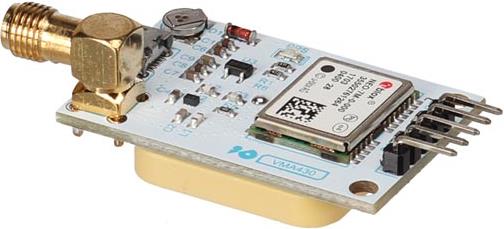

Arduino kompatibilni GPS modul U-BLOX NEO-7M, Velleman VMA430
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Arduino kompatibilni GPS modul U-BLOX NEO-7M, Velleman VMA430
Proizvođač: | Velleman |
Šifra: | 1319371 |
Kataloški broj: | VMA430 |
Jamstvo: | Nema |
Prosječna ocjena: 0,00 | Glasova: 0 |
Ocijeni
ovaj proizvod
|
The NEO-7 series of standalone GNSS modules is built on
the exceptional performance of the u-blox 7 GNSS (GPS,GLONASS, QZSS and SBAS) engine.
The NEO-7 series delivers high sensitivity and minimal acquisition times in the industry proven NEO form factor.
Features
U-BLOX NEO-7N module, compact and excellent performance
parameters can be set via serial port and saved in EEPROM
with SMA interface, you can connect a variety of antenna, strong adaptability
compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems
back-up rechargeable battery on board
with micro USB, no need for USB-TTL tools
with TTL interface
onboard ceramic antenna
sample code: https://playground.arduino.cc/UBlox/GPS
evaluation software (U-Center) available for download
Specifications
supply voltage: 3.3 to 5 VDC (or by USB cable)
connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse)
default baud rate: 9600 baud
dimensions: 4 x 2.5 x 1.5 cm
weight: 15 g
