CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700
Rear Panel I/O Ports

USB Ports 1 x Thunderbolt 4 / USB-C 4.0
1 x USB-C 3.2
1 x USB-C 3.1
7 x USB 3.1
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 2 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x Antenna
Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x Chassis fan headers
2 x Radiator fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x Water in header
1 x Water out header
1 x Water flow header
Thunderbolt Port(s) 1 x Thunderbolt
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
1 x 6-pin PCIe
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4 or SATA)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x WB_ADD header
1 x LN2 mode header
1 x Thermal Sensor header
Memory

Memory Bus Speed Up to 6400+ MHz (OC)
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM
Motherboard

Chipset Manufacturer Intel
Northbridge Z690
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes
Expansion

Number of PCI Express Slots 2 x PCI Express 5.0 x16 slots (@ x16 or x8/x8)
1 x PCI Express 3.0 x1 slot
Graphics Device

Integrated Graphics Supported Yes
Sound

Integrated Sound Realtek
Warranty

Warranty 3 Years
Network

Integrated Network 1 x Marvell AQtion
Intel
Network Speeds Supported Marvell: Up to 10 Gbps
Intel: Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2
System Requirements

Operating Systems Supported Microsoft Windows 11 / 10 64-bit
System

BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted) Ys
Drivers Yes
Physical

Form Factor E-ATX Motherboard

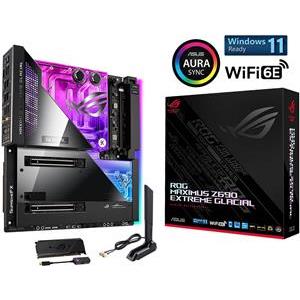

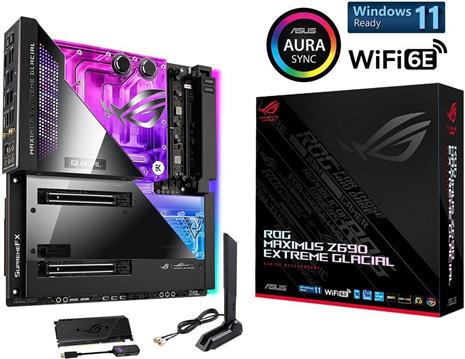

In The Box ASUS ROG MAXIMUS Z690 EXTREME GLACIAL Motherboard
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cables
1 x RGB extension cable
3 x ROG weave SATA 6G cables
1 x 3-in-1 Thermistor cables pack
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape
1 x Fan Controller manual
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
1 x Monoblock
3 x Screw package for monoblock
1 x Thermal pad for monoblock
1 x Fittings for monoblock
1 x M.2 heatsink
1 x ASUS Wi-Fi moving antennas
1 x M.2 SSD screw package
1 x Q-connector
1 x ROG CLAVIS DAC
1 x ROG graphics card holder
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
1 x USB drive with utilities and drivers
1 x User guide
Width 305 mm
Length 277 mm
Weight 1.6 kg
Key Features

Firewire No
Wireless Network Yes
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 9 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor eATX
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset Intel Z690
Thunderbolt Yes
Motherboard Model ASUS ROG Maximus Z690 Extreme Glacial
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 6400 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Power Requirement (auto) 100 W
Max Memory Speed Supported (Non-overclocked) 4800 MHz
Max Memory Speed Supported (overclocked) 6400 MHz
CPU Power Pins (female) 16
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 2
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Item Details

Manufacturer ASUS
Manufacturer Code 90MB1A60-M0EAY0
Alternative Part Number ROG MAXMIMUS Z690 EXTREME GLACIAL
EAN 4711081463405
UPC 195553463409
Condition New
