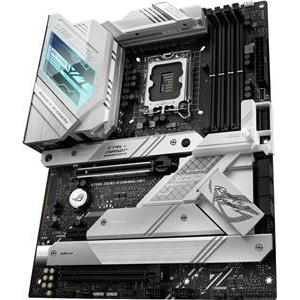

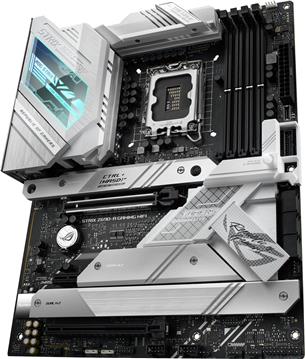

ASUS ROG STRIX Z690-A GAMING WIFI - motherboard - ATX - LGA1700 Socket - Z690
| Proizvođač: | Asus |
| Šifra: | 1385862 |
| Kataloški broj: | 90MB1AP0-M0EAY0 |
| Jamstvo: | 12 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
350,90 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 10,83 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
shape factor
ATX
Socket
Intel 1700
chipset
Intel Z690
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR5 DIMM, dual PC5-51200U/?DDR5-6400 (OC), max. 128GB (UDIMM)
Extension slots
1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (PCIe/?Intel CNVi, 2230, occupied with WiFi+BT module)
external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-C 3.1 (10Gb/?s), 2x USB-A 3.1 (10Gb/?s), 4x USB-A 3.0 (5Gb/?s, Z690), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Intel I225-V), 5x jack, 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.2 Key-A Header (20Gb/?s), 2x USB 3.0 Header (5Gb/?s, 4x USB 3.0, Z690), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 6x SATA 6Gb/s (Z690), 1x TPM-Header, 1x Thunderbolt-Header 13-Pin (14-1), 1x S/?PDIF-Header, 1x Chassis Intrusion-Header
Header Cooling
2x CPU fan 4-Pin, 5x fan 4-Pin, 1x AIO-pump 4-Pin, 1x Thermal-sensor
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
buttons/Switches
USB BIOS Flashback (external), clear-CMOS-Button (external)
Audio
7.1 (Realtek ALC4080, ASUS SupremeFX), AMP (Savitech SV3H712), DTS Sound Unbound
Graphics
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2), Bluetooth 5.2
RAID level
0/?1/?5/?10 (Z690)
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM
17 virtual phases (16+1), 9 real phases (8+1), PWM-Controller: ASP2100 (RT3628AE, max. 9 phases)
MOSFETs CPU
16x 80A SiC659
MOSFETs SoC
1x 80A SiC659
Lighting
RGB, 1 zone (I/?O cover)
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), I/?O-shield integrated, 3x M.2-passive cooler, onboard TPM 2.0 support (Intel PTT)
Warranty
three years (handling by merchant)
USB nomenclature
Link
Note
Compatible with socket 115x/?1200-cooler. Due to differences in the Z-height (stack-up height), however, the contact pressure and thus the cooling capacity is reduced.
| Osnovne karakteristike | |
|---|---|
| Socket: | 1700 |
| Format ploče: | ATX |
| CPU podrška: |
Intel 14. gen Intel 13. gen Intel 12. gen |
| Memorija: | DDR5 |
| Chipset: | Intel Z690 |
