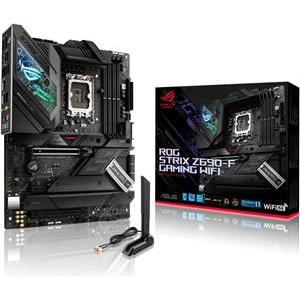

ASUS ROG STRIX Z690-F GAMING WIFI Intel Z690 LGA 1700 ATX :

- Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
- High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Long product name ASUS ROG STRIX Z690-F GAMING WIFI Intel Z690 LGA 1700 ATX :
Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 power stages, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks, PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and Aura Sync RGB lighting
<<ASUS ROG STRIX Z690-F GAMING WIFI Intel Z690 LGA 1700 ATX:

ROG STRIX Z690-F GAMING WIFI
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

POWER DESIGN
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

Integrated I/O Cover & VRM Heatsinks
Two thick VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.

Thermal Pads
Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.

Four M.2 Heatsinks
Multiple M.2 heatsinks help maintain onboard M.2 NVME SSDs at optimal temperatures for consistent performance and reliability.

M.2 Backplate
An integrated M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.

COOLER BY DESIGN
ROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.

CPU fan headers
A dedicated pair of PWM/DC fan headers for CPU coolers

AIO pump fan header
A dedicated PWM/DC header for self-contained water-cooling setups

M.2 heatsink
Keeps a mounted M.2 SSD at the optimum operating temperature for consistent performance and reliability.

M.2 backplate
Provides additional heat dissipation to deal with the thermal load of high-performance M.2 NVME SSDs

4-pin PWM/DC fan headers
Headers that supports auto-detection of PWM or DC fans

TWO-WAY AI NOISE CANCELATION
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*A splitter cable is necessary when using a 3.5 mm headset.

AI OVERCLOCKING
ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.

Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.

AI COOLING
ASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature.

AI NETWORKING
The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.

Identification
GameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.

Boost
GameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay ? even when you're streaming high-quality video or transferring large files.

Visualization
An intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.

WHAT IT DOES

DDR5 Overclocking Strength - ASUS Enhanced Memory Profile
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Strix Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

New to overclocking? Click here to learn about the ASUS-exclusive AEMP technology
A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

PCIe Performance
With four strategically placed M.2 slots, ROG Strix Z690-F Gaming WiFi leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

WIFI 6E (802.11 AX)
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi

Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, delivering up to 2.5X the speed of standard Ethernet connections for faster file transfers, low-lag gaming and high-resolution video streaming.

SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-F Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

UNDENIABLY ROG STRIX
A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview.

OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs and third-party lighting strips that can connect to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

PCIE SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

CLR CMOS BUTTON
A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FLASHBACK™ BUTTON
BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.

ROG STRIX CABLE ORGANIZER
This cable management feature enhances the flexibility of PC building. And with its Velcro interior, users can keep reusing the organizer if they need to make changes later on.

CERTIFIED COMPATIBILITY
ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices. Our Qualified Vendor List (QVL) provides a reference for identifying guaranteed-compatible components and memory.

ASUS AIO coolers are also compatible with a wide variety of CPUs, up to and including 12th Gen Intel processors, giving you ultimate flexibility to cool the CPU that fits your needs.

THE ROG STRIX ECOSYSTEM AWAITS
Level up your game with ROG Strix. Enjoy complementary aesthetics, control and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

SONIC STUDIO III
ROG Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

DTS: SOUND UNBOUND
ROG Strix Z690 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with game developers for supported titles.

AIDA64 EXTREME
ROG Strix Z690 motherboards include an AIDA64 Extreme 60 days free trial. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the OLED panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and selected models.

ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.

You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.
*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
Short summary description ASUS ROG STRIX Z690-F GAMING WIFI Intel Z690 LGA 1700 ATX:

ASUS ROG STRIX Z690-F GAMING WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G, DDR5-SDRAM, 128 GB, DIMM
Long summary description ASUS ROG STRIX Z690-F GAMING WIFI Intel Z690 LGA 1700 ATX:

ASUS ROG STRIX Z690-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,SATA, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11az), Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Disclaimer ASUS ROG STRIX Z690-F GAMING WIFI Intel Z690 LGA 1700 ATX:

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
