ATmega328 UNO razvojna pločica


  large-image
ATmega328 UNO razvojna pločica
Kliknite na sliku za povećanje
thumb thumb thumb
Najprodavanije
Najpopularnije
Proizvođač: Velleman
Šifra: 1308777
Kataloški broj: VMA100
Jamstvo: Nema
Raspoloživost: Na upit (Na upit)
isporuka nepoznato
Navedeni rok isporuke je informativan te predstavlja uobičajeno vrijeme u kojem bi proizvod trebao biti spreman za isporuku, ukoliko u ovom trenutku zaprimimo uplatu.

*U navedeni rok se ne računaju subote i nedjelje, te državni praznici i ostali neradni dani. U slučaju slanja dostavnom službom nije uračunato vrijeme dostave.
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod

29,60 €

Načini plaćanja online

Popust 10%
29,60 €

Transakcijski račun
Popust 9%
29,93 €

MasterCard, Visa, Kriptovalute
Popust 8%
30,26 €

Maestro
Popust 6%
30,92 €

Union, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
31,24 €

Diners, ZABA Master/Visa 2-6 rata, ERSTE Master/Visa/Maestro 2-6 rata
Popust 4%
31,57 €

Diners 2-12 rata, PBZ Visa Inspire/Maestro 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
31,90 €

ZABA Master/Visa 7-12 rata
Popust 2%
32,23 €

ERSTE Master/Visa/Maestro 2-6 rata, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
32,89 €

ZABA Master/Visa 13-24 rate, Diners 13-24 rate

Načini plaćanja u trgovini

Popust 10%
29,60 €

Novčanice
Popust 9%
29,93 €

Maestro, MasterCard, Visa
Popust 7%
30,59 €

PBZ Maestro/Visa Inspire 2-6 rata
Popust 6%
30,92 €

RBA Master/Visa 2-12 rata
Popust 5%
31,24 €

Diners, ZABA kartice 2-6 rata, Diners 2-6 rata, ERSTE Maestro/Visa/Master 2-8 rata, PBZ Maestro/Visa Inspire 7-12 rata
Popust 4%
31,57 €

ZABA Master/Visa 7-12 rata, Diners 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
31,90 €

ERSTE Maestro/Visa/Master 9-12 rata
Popust 2%
32,23 €

Diners 13-24 rate, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
32,89 €

ZABA Maestro/Visa 7-12 rata, ZABA Visa 13-24 rate, ZABA Master 13-36 rata, Diners 25-36 rata

*MBNET kartice (Maestro, Visa, Mastercard) kojima je moguće plaćanje na rate izdane od Slatinske banke, Istarske kreditne banke, Sberbanke, KentBank i Agram banke
**kod nonSEPA transakcija naplaćujemo naknadu banke

već od 0,91 €/mjesečno

Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC

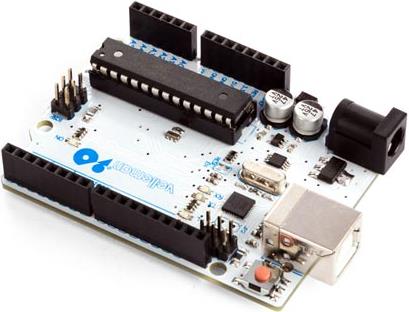

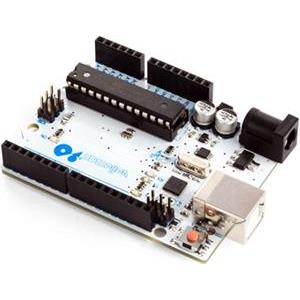

The VMA100 (Arduino® Uno kompatibilni) is a microcontroller board based on the ATmega328.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analogue inputs,
a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button.

It contains everything needed to support the microcontroller; connect it to a computer with a

USB cable or power it with a AC-to-DC adapter or battery to get started.

Features

100% compatible with Arduino® UNO

Specifications

microcontroller: ATmega328
operating voltage: 5 VDC
input voltage (recommended): 7-12 VDC
input voltage (limits): 6-20 VDC
digital I/O pins: 14 (of which 6 provide PWM output)
analogue input pins: 6
DC current per I/O pin: 40 mA
DC current for 3.3 V pin: 50 mA
flash memory: 32 kB (ATmega328) of which 0.5 kB used by bootloader
SRAM: 2 kB (ATmega328)
EEPROM: 1 kB (ATmega328)
clock speed: 16 MHz
length: 68.6 mm
width: 53.4 mm
weight: 25 g
