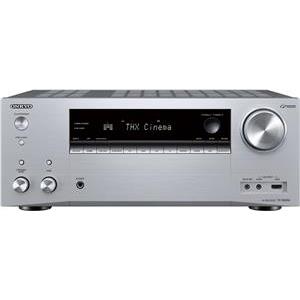

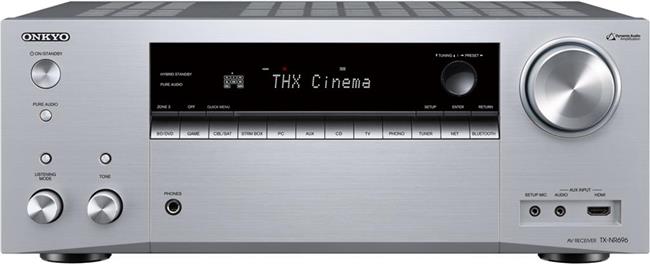

7.2-Channel Network A/V Receiver

Skladan spoj tehnologije i tradicije, TX-NR696 prilagođava se zabavnom životu i pronalazi emociju u svakom izvoru zvuka,
od 3D filmova do vinilnih ploča. Mrežni audio nove generacije okuplja ugrađen Chromecast, radi sa Sonosom, AirPlay 2 i DTS Play-Fi s streaming uslugama za glatki multi-soban zvuk razvijen podrškom za novu brzinu Wi-Fi 802.11ac (2x2 MIMO) ,

Dolby Atmos i DTS: X privlače publiku duboko u filmove i igre, THX Certified Select osiguravajući kino-referentno iskustvo. Ako postavljanje 5.2.2-ch nije moguće, Dolby Atmos Visight Virtualizer i DTS Virtual: X mogu stvoriti 3D zvučno polje iz horizontalnih rasporeda zvučnika.

Izlazi iz zone 2 donose pojačani audio s više izvora u dvije prostorije, dok fleksibilan novi zonski linijski izlaz / prednji L / R terminal za izlaz omogućuje slušanje kako želite i gdje želite. S revitaliziranim DAA sustavom, 4K / 60p / HDR HDMI terminalima i mnogim dodacima, ovaj je proizvod izvanredan u svakom pogledu.

THX certificirani Select DAA sustav
Radi sa Sonosom, ugrađenim Chromecastom, AirPlay 2, DTS Play-Fi, FlareConnect, Spotify, Amazon Music, TIDAL, Deezer, TuneIn
Podržava 5.2.2-ch Dolby Atmos i DTS: X reprodukciju
Dolby Atmos virtualizator visine i DTS Virtual: X
Izlaz HDMI Pod / Zona 2 dijeli medij na drugi zaslon ili projektor
Četverojezgreni SoC podržava 802.11ac (2x2 MIMO) Wi-Fi specifikacije
Zona 2 / Izlaz za liniju B / Prednji L / R s DAC-om dijeli D / A zvuk (uključujući HDMI / SPDIF) ili povezuje napajanje pojačala

Izlazi iz zone 2 distribuiraju D / A izvore (uključujući HDMI / SPDIF)
Stereo način dodjeljivanja za prebacivanje prednje reprodukcije na visinske kanale
Vocal Enhancer temeljen na DSP-u poboljšava preglednost dijaloga
GUI s OSD-om putem HDMI-a sadrži funkciju prikaza medija za ulazne / izlazne podatke
HDMI podržava 4K / 60p, 4K HDR, 4: 4: 4/24-bitni, BT.2020, HDCP 2.2
AccuEQ unaprijed s AccuReflex-om
Unaprijed postavljene memorije za glasnoću jednim dodirom za A / V ulaze

Amplifier Features

175 W/CH (6 ?, 1 kHz, 10% THD, 1 channel driven)
THX Certified Select certified Dynamic Audio Amplification
Custom High-Current Low-Noise Power Transformer
Large custom-made audio power capacitors
Non-phase-shift amp topology with discrete output stage
New dual-transistor amp output stages (L/R/C) doubles instantaneous current output for stunning dynamics and bass impact
Strengthened power-supply line for high-current dynamics
Refined HDMI grounds, short signal paths reduce noise
SoC board remote from audio paths to reduce noise
High-current drive handles 4-ohm speaker loads
High-grade AKM (AK4458) 384 kHz/32-bit multichannel D/A conversion
VLSC (Vector Linear Shaping Circuitry) filtering (Front L/R)
PLL (Phase Locked Loop) anti-jitter technology for S/PDIF audio
Tone controls (bass/treble) for front L/R channels
Pure Audio Mode and Direct Mode for high-fidelity sound


VIDEO & AUDIO SUPPORT

Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG), BT.2020, 4:4:4 color-space, 3D Video, ARC (Audio Return Channel), DeepColor™, x.v.Color™, and LipSync via HDMI
Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio® decoding
Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing
Dolby Surround® and DTS® Neural:X upmixing technology
THX listening modes for movies, music, and games
Sound optimization for games (Rock, Sports, Action, and RPG)
SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
Theater-Dimensional virtual surround-sound function

NETWORK FEATURES

Next-Generation Network Audio with multi-room audio, streaming service integration, and remote app control
Works with Sonos certified for the Sonos Home Sound System*7
Chromecast built-in and voice control with the Google Assistant*8
AirPlay 2 multi-room audio and voice control with Siri*9
DTS Play-Fi® multi-room audio via Onkyo Music Control App*10
FlareConnect™ multi-zone audio with compatible components
Quad-core SoC processing evolves network functions and supports high-speed 802.11ac (2x2 MIMO) Wi-Fi specification
Supports Onkyo Controller remote and music streaming app*10
Hi-Res Audio playback via network (DSD 11.2 MHz/5.6 MHz/ 2.8 MHz*11; FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit*12)

CONNECTION TERMINALS

7 HDMI inputs (1 front), 2 outputs (Main [ARC], Sub/Zone 2)
2 digital audio inputs (optical and coaxial, assignable)
4 analog RCA inputs (assignable)
3.5 mm mini-stereo analog input (front)
1 phono input with built-in MM equalizer for turntable
3.5 mm setup mic input for AccuEQ (front)
6.35 mm headphone jack (front)
2 subwoofer pre-outs
Zone 2/Zone B line-out/Front pre-out (analog RCA)
7 screw-type speaker posts
Ethernet terminal for network connection and IP control
USB input (5 V/1 A) for audio playback (rear)
AC socket for detachable power cable

ADVANCED FEATURES

AccuEQ Room Acoustic Calibration and AccuReflex
DSP Vocal Enhancer boosts dialog audibility via remote keys or front panel
Bluetooth® wireless technology and Wake on Play Standby with auto input selection supporting select smart speakers
Advanced Music Optimizer™ improves compressed audio playback
Zone 2 speaker outputs for powered simultaneous multi-source D/A audio distribution (including HDMI/SPDIF) with Zone 2 DAC; output via Zone 2 and Zone 2 line-out
Front/Height/Surround Back switching (layout dependent) for ambient listening in Stereo Assign Mode
Zone 2/Zone B line-out/Front L/R pre-out (analog RCA) with Zone 2 DAC connects compatible audio systems for synced/independent D/A playback (including HDMI/SPDIF) in Main and Zone 2; connects compatible transmitters for wireless headphones; connects power amp for Front L/R speakers
One-touch volume memory-presets for A/V inputs via front panel
1080p to 4K upscaling and GUI with overlaid OSD via HDMI
Crossover adjustment for each channel(40/50/60/70/80/90/100/120/150/180/200 Hz)
A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
Various standby modes and HDMI pass-through
IP control for home automation systems via LAN
3-Mode display dimmer (Normal/Dim/Dimmer)
40 FM/AM random presets
Redesigned simple remote control
