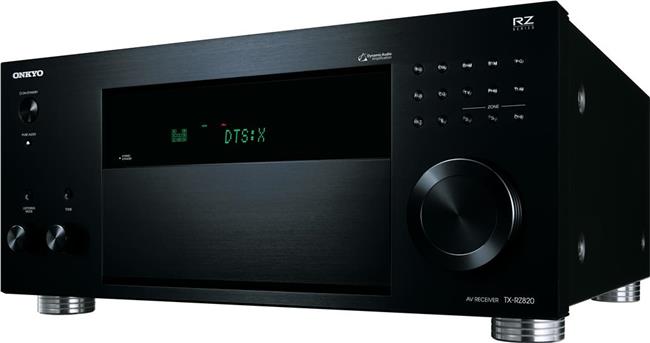

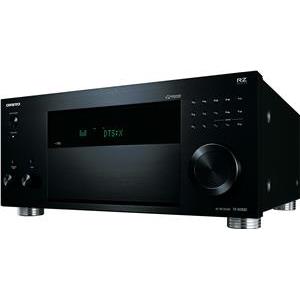

ONKYO TX-RZ820

7.2-Channel Network A/V Receiver

Monumental Sound & Vision Delivered Without Comprise

Upgrades to the TX-RZ820 Network A/V Receiver—our THX® Certified Select™ 7.2-channel flagship—result in genuinely spectacular sonic performance. Dynamic Audio Amplification delivers instantaneous high-current power to full-scale speakers for thrilling energy and lifelike transient response across a wide 5 Hz–100 kHz spectrum. VLSC™ on all channels and non-phase-shift circuitry clarify details floating in three-dimensional space. Multi-room network and analog audio, including streaming over Chromecast built-in* and DTS Play-Fi®*, are served to NCP-302 wireless speakers via FireConnect™ powered by Blackfire. Powered and pre-/line audio distribution adds app-controllable audio in up to three zones simultaneously. Decoding Dolby Atmos® and DTS:X™, the receiver also supports Dolby Vision™, HDR10, HLG (Hybrid Log-Gamma), and BT.2020 video pass-through, and is set up for custom installs. Simply, it’s the no-compromises 7.2-channel powerhouse you’ve been waiting for.
* Enabled with a future firmware update.

Key Features

THX® Certified Select™ Reference Sound
Unleash Dolby Atmos® or DTS:X™ Home Cinema
Onkyo Controller Supports Next Generation Network Audio
Chromecast built-in*, DTS Play-Fi®*, FireConnect™
Wi-Fi®, AirPlay, Spotify®, and Bluetooth®
Supports HDR10, HLG, Dolby Vision™, BT.2020, 4K/60 Hz, and HDCP 2.2

--------------------------------------------



HIGHLIGHTS

THX® Certified Select™ Reference Sound
Dynamic Audio Amplification with 180 W/Ch, 5 Hz–100 kHz Frequency Response, and VLSC™ On All Channels
Supports 5.2.2-Channel Dolby Atmos® and DTS:X™ Playback
7 HDMI® Inputs (1 Front*1) / Main Out/Zone 2 Out Supporting Dolby Vision™, HDR10, HLG, and 4K/60p Pass-through and HDCP 2.2
Ready for Chromecast built-in*2 and DTS Play-Fi®*2
5 GHz/2.4 GHz Wi-Fi®, AirPlay, Spotify®, TIDAL, Deezer, Pandora®*3, TuneIn*4
FireConnect™*5 Wireless Multi-room Audio, Powered Zone 2, Zone 2/3 Pre-/Line Outs, and 7.2-Channel Pre-Outs

ADVANCED FEATURES

THX Certified Select for Cinema-Reference Volume and Sound Quality
HDMI Terminals Supporting Dolby Vision, HDR10, HLG, BT.2020, 4K/60 Hz Pass-through, and HDCP 2.2
Zone 2 HDMI (4K/60 Hz/HDCP 2.2) for Distributed Video
Supports 5.2.2-Channel Dolby Atmos Playback and Dolby Surround Upmixing
DTS:X Object-based Audio Reproduction and DTS Neural:X™ Upmixing for Legacy Soundtracks
AccuEQ Room Acoustic Calibration with AccuReflex Phase Alignment for Dolby Atmos-enabled Speakers
Ready for Onkyo Controller App Integrated Multi-room Intuitive Operation*6
5 GHz/2.4 GHz Wi-Fi for Stable Network Connection
Features Chromecast built-in Wireless Audio Streaming Platform
DTS Play-Fi Shares Music from Apps to Receiver and Wireless Speakers
AirPlay Audio Streaming from iTunes and iPad, iPhone, and iPod touch
Supports Hi-Res Audio Including Direct DSD 11.2 MHz*7, DSD 5.6 MHz/2.8 MHz*7, 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC, and Dolby® TrueHD*8
Supports Spotify, TIDAL, TuneIn, Pandora, and Deezer Services
FireConnect™ Multi-room Network and Analog Audio Distribution to Supported Wireless Speakers*9
Powered Zone 2 Speaker Outputs and Zone 2/3 Pre-/Line Output with Dedicated DAC Supporting Network, S/PDIF, HDMI, and Analog Audio*10
7.2-Channel Pre-Outs, 12 V Trigger-Out, and IR Input
Bluetooth® Wireless Technology for Mobiles, Laptops, and PCs (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
Supports Front L/R Channel Bi-Amping in 5.2-Ch Speaker Layout
Advanced Music Optimizer Improves Compressed Digital Audio Quality, Including Bluetooth Audio
480i De-interlacing (480i to 480p) for Legacy Video Formats

AMPLIFIER FEATURES

180 W/Ch (6 ?, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Dynamic Audio Amplification System with 5 Hz–100 kHz Frequency Response
H.C.P.S. (High Current Power Supply) EI Transformer
VLSC™ (Vector Linear Shaping Circuitry) Noise-filtering Technology for All Channels
Optimum Gain Volume Circuitry
Non-Phase-Shift Amplification Circuitry for Clarity and Detail
Discrete Output Stage Circuitry for Low Distortion

PROCESSING FEATURES

Dolby Atmos and DTS:X Reproduction (5.2.2 Channels)
HDMI Support for 4K/60 Hz, HDR10, HLG, Dolby Vision, 3D, Audio Return Channel (ARC), DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), Multichannel PCM, and CEC
AKM (AK4458) 384 kHz/32-bit Multichannel DAC
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
32-bit Digital Signal Processing
THX Listening Modes for Movies, Music, and Games
DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
Direct Mode for Audio Reproduction Close to Original Source Quality
Front L/R Tone Controls (Bass/Treble) and Independent Zone 2 and Zone 3 Tone, Balance, and Volume Controls

CONNECTION FEATURES

7 HDMI Inputs (6 Rear, 1 Front), Main Out, and Zone 2 Output
Powered USB Port (5 V, 1 A) for Audio Playback
2 Composite Video Inputs
2 Component Video Inputs
3 Digital Audio Inputs (2 Optical and 1 Coaxial)
6 Analog Audio Inputs
Phono Input (MM) and Equalizer for Turntable
7.2-Channel Pre-Outs
2 Subwoofer Pre-Outs
LAN Input with IP Control Support for Home Automation Systems and Setup via a Connected PC
RS-232 Serial Input for External Control Commands
12 V Trigger Out (Main, 100 mA) for External Component Control Integration
IR Input for Remote Control
6.35 mm Headphone Jack (Front)
Speaker Posts with Screw Knobs
3.5 mm Speaker Setup Mic Input and Microphone

OTHER FEATURES

Aluminum Front Panel, Volume Control, and Flap Door
Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
Quick Setup Guide via GUI and Easy Connection Diagram on Rear Panel
Economical HDMI Pass-through and Network Standby Functions
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/RDS and AM Random Presets
Rack-mounting Kit (Optional)
Full-sized Simple Remote Control

*1 HDMI Front Input does not support 4K/60p/4:4:4/24-bit video, HDR10, Dolby Vision, HLG, or BT.2020. *2 Requires a future firmware update. *3 Pandora available in Australia and New Zealand only. *4 Availability of services may vary with region. Please confirm before purchase. Subscription may also be required. *5 FireConnect™ is a technology based on Blackfire provided by Blackfire Research Corp., USA. Sampling rates of 44.1 kHz and 48 kHz are supported. *6 For iOS and Android™ devices. Please check App Store or Google Play™ for device and OS requirements. *7 DSD not supported over wireless LAN. *8 Dolby TrueHD playback via USB input only. *9 Sharing audio from external analog inputs depends on the model and is enabled with a future firmware update. *10 Audio distribution via S/PDIF or HDMI not supported in Zone 3.
