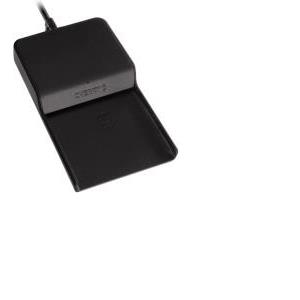

Cherry TC-1100 Smart Card Terminal, crni
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Cherry TC-1100 Smart Card Terminal, crni
Proizvođač: | Cherry |
Šifra: | 1325985 |
Kataloški broj: | JT-0100WB-2 |
Jamstvo: | 36 |
Prosječna ocjena: 0,00 | Glasova: 0 |
Ocijeni
ovaj proizvod
|
- Long-lasting, class 1 terminal for contact smart cards
- TC 1100 - the reliable solution for bidirectional communication with contact chip cards
- Design: intelligent
- Operation: with one hand. Workmanship: high-quality
Features
- Class 1 smart card terminal
- Bidirectional communication for contact smart cards
- LED status display
- High-quality workmanship, state-of-the-art technology and intelligent design
- Card guide in housing for one-handed operation and rubber surfaces to prevent slipping
- Data exchange via loop contact with approx. 100,000 mating cycles
- Connection via USB 2.0 port
- 1.75 m cable length for maximum freedom of movement
- Software supports Microsoft Windows, Linux and Mac OS X operating systems
- Supported standards: PC/SC, CCID, CT-API
- EMV 2000 Level 1 certification
- Satisfies requirements defined by FIPS-201
Specifications
- Hardware interface: USB
- Agency Approvals: EMV 2000 Level 1
- Chip-card protocols: T=0, T=1, S=8, S=9, S=10
- Contact: mechanical swipe reader
- Software interface: CT-Api, PC/SC, CCID
- Mating cycles: approx. 100,000 operations
- Compatible chip card types: Reads and writes on all ISO 7816 cards
- Transmission speed reader card: 420 kBit/s
- Transmission speed reader system: max. 12 MBit/s
- Chip card pulse frequency: 4.8 MHz
- Interface: USB
- Cable length: approx. 1.75 m
- Operating temperature: 0C to 50C
- Storage temperature: -20C to 65C
- Dimensions: 100×65×12 mm
- Weight: 75 g
