Intel 775 Core 2 Duo Supports all speeds
Pentium 4 Prescott Up to 540
Cedar Mill Up to 650
Celeron D Supports all speeds
AMD AM2 Athlon 64 FX Up to 53
Athlon 64 X2 Up to 5600+
Athlon 64 Supports all speeds
Sempron
754 Sempron Supports all speeds
Athlon 64
939 Athlon 64 FX Up to 53
Athlon 64 X2 Up to 5600+
Athlon 64 Supports all speeds
940 Athlon 64 FX Up to 53

Dimensions 109(L) x 107(W) x 63(H) mm
Weight(1) 750g
Base Material Pure Copper
Dissipation Area 2,890?

Bearing Type 2 Ball-Bearing
Speed(2) 1,350rpm ± 10% ~ 2,400rpm ± 10%
Noise Level(3) 17.0dBA ± 10% ~ 24.0dBA ± 10%

(1) The maximum weight for a cooler is specified as 450g for Intel Socket 775 and AMD Socket AM2/754/939/940. Special care
should be taken when moving a computer equipped with a cooler which exceeds the relevant weight limit. Zalman is not
responsible for any damage that occur while moving a computer.
(2) The fan operates at 2,650rpm(27.5dBA±10%) if directly connected to the motherboard’s power connector without the use of
FAN MATE 2.
(3) Measured 1m distance away from source.
Dimensions : 70(L) x 26(W) x 26(H) mm Weight : 20g Output Voltage : 5V ~ 11V ± 2%
Allowable Power : 6W or lower Connector : 3-Pin

Does not generate noise or vibration in Silent Mode.
Pure copper base materials ensure excellent heat dissipation.
Compatible with single and dual core CPUs for Intel Socket 775 and AMD Sockets AM2/754/939/940.
92mm fan inside the heatsink maximizes airflow.
Adjustable fan speed controller(FAN MATE 2) enables control of noise and fan performance.


Common Components

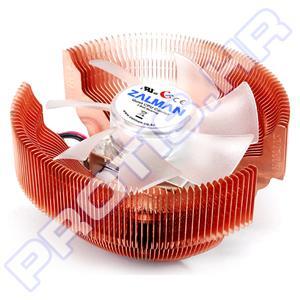

- Cooler (CNPS7000C-Cu LED)
- Thermal Grease
- Clip A
- Installation Bolt (4 bolts)
- Clip B
- Clip Lever
- Fan Speed Controller (FAN MATE 2)
- Cable for FAN MATE 2
- Double-Sided Tape (for FAN MATE 2 Attachment)
- User’s Manual (in English and Korean)

Components for Intel Socket 775
- Clip Support for Socket 775
- Backplate for Socket 775
- Clip Support Fixing Bolt (4 bolts)

Component for AMD Socket AM2+/AM2/754/939/940
* No additional components
