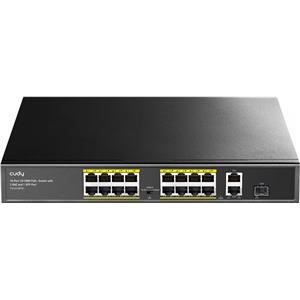

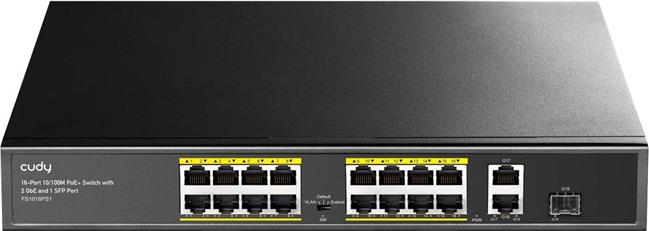

16-Port 10/100M PoE+ Switch with 1 Combo SFP Port, Model: FS1018PS1
?Previous: 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot, Model: FS1026PS1
?Next: 8-Port 10/100M PoE+ Switch with 2 Uplink Ports, Model: FS1010PG

Overview
Support
Setup Video

FS1018PS1-1FS1018PS1-2
FS1018PS1-380x380-1 FS1018PS1-380x380-2 FS1018PS1-380x380-3

200 W Power budget & 30 W Maximum One Port

Supports a total PoE power of 200 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.


Watchdog guarantees uninterrupted operation of the PoE devices

The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.


Plug&Play, Fanless design

Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)
GS1005P-380x380-1 GS1005P-380x380-2 GS1005P-380x380-3

Surveillance

Works with IP Cameras for home and office, small business


VoIP Conference Call

Works with VoIP phones for business conference


Wi-Fi Coverage

Works with WiFi APs for office and business





Speci?cations






Mode FS1018PS1
Power Power Supply Built-in power supply
Voltage Range AC100~240V
Consumption 190W for 16 PoE
Ethernet Speed 1~16 Port: 10/100/Mbps
G1(combo):10/100/1000Mbps & 1.25bps
G2:10/100/1000Mbps
Transmission Distance 100Meter(328ft)for RJ-45
The distance is determined by the optical module
The optical module is optional
Network
Switch Ethenet Standard IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching Capacity 7.2G
Transfer Rate 14880 pps for 10Mbps
148800 pps for 100Mbps
1488000 pps for 1000Mbps
MAC Adsress 4K MAC sddress table
Link/ACT On(Green) The port is connecting
Blinks The port is receiving or transmitting data.
Off The port is notl inked successfully with the device
POE On(Oranfe) PD is connected
Off No PD is connected or power forwarding fails
PoE Pin Assignmnet V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)
Environment Working Temperature 0~40°C
Storage Temperature -40~70°C
Humidity Non Condesing 0~85%
Mechanical Dimension L*W*H 280*180*44mm
Color Gray

? 200 watts PoE power supply, up to 30 watts per port
? 2 10/100/1000M uplink ports +1 SFP Port
? 16 10/100M PoE+ ports
? CCTV mode support remote PoE feeding up to 250m
? VLAN mode isolate each PoE Ports for security
? IEEE 802.3at / IEEE 802.3af standard compliant
? Plug&play, simple setup with no configuration needed
? Watchdog reactivates the abnormalPD by resuming POE power
