Collapse Type

Type

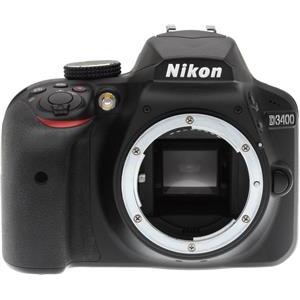

Single-lens reflex digital camera
Lens Mount
Nikon F bayonet mount

Collapse Image Sensor

Picture Angle
Nikon DX format (Effective picture angle 1.5x [Approx.] conversion factor)
Effective Pixels (Megapixels)
24.2 million
Sensor Size
23.5 mm
x 15.6 mm
Image Sensor Format
DX
Image Sensor Type
CMOS
Total Pixels
24.7 million
Dust-Reduction System
Image Dust Off reference data (optional Capture NX-D software required)
Dust-Off Reference Photo
Yes
Image Area (pixels)
DX-format
(L) 6,000 x 4,000

(M) 4,496 x 3,000

(S) 2,992 x 2,000

Collapse File System

File Format Still Images
Compressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline Compliant with Fine (approx 1:4), Normal (approx 1:8) or Basic (approx 1:16) Compression
NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats
Storage Media
SD
SDHC
SDXC
Card Slot
1 Secure Digital (SD)
File System
Compliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras)

Collapse Viewfinder

Viewfinder
Eye-level Pentamirror Single-Lens Reflex viewfinder
Viewfinder Frame Coverage
95% Horizontal
95% Vertical (Approx.)
Viewfinder Magnification
0.85x (Approx.)
Viewfinder Eyepoint
18mm (-1.0m—1)
Viewfinder Diopter Adjustment
-1.7 to + 0.5m—1
Focusing Screen
Type B BriteView Clear Matte Mark VII screen
Reflex Mirror
Quick-return type

Collapse Lens

Lens Aperture
Instant-return type
Lens Compatibility at a Glance***
Autofocus is available with AF-P and type E and G AF-S lenses
Compatible Lenses
This camera supports autofocus with AF-P and type E and G AF-S lenses only.
AF NIKKOR for F3AF not supported.
AI-P NIKKOR: All Functions supported except autofocus and 3D Color Matrix Metering II.
Electronic rangefinder can be used if Maximum Aperture is f/5.6 or Faster.
IX NIKKOR lenses cannot be used.
Non-CPU: Autofocus not supported. Can be used in mode M, but exposure meter does not function.
Other AF NIKKOR: All Functions Supported Except 3D Color Matrix Metering II.
Type D PC NIKKOR: All Functions Supported Except Autofocus and some Shooting Modes.
Type G or D AF NIKKOR not equipped with an autofocus motor: all functions supported except autofocus.

Collapse Shutter

Shutter Type
Electronically controlled vertical-travel focal-plane
Shutter Speed
1/4000 to 30 sec.
Fastest Shutter Speed
1/4000 sec.
Slowest Shutter Speed
30 sec.
Flash Sync Speed
Up to 1/200 sec.
Shutter Release Modes
Continuous
Delayed Remote
Quick Response Remote Mode
Quiet shutter-release
Self-timer Mode
Single-frame [S] mode
Frame Advance Rate
Up to 5 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
Top Continuous Shooting Speed at full resolution
5 frames per second
Self-timer
2, 5, 10, 20 sec.; 1 to 9 exposures
Timer duration electronically controlled

Collapse Exposure

Exposure Metering System
TTL exposure metering using 420-pixel RGB sensor
Metering Method
Center-weighted: Weight of 75% given to 8 mm circle in center of frame
Matrix: 3D color matrix metering II (type E and G lenses); color matrix metering II (other CPU lenses)
Spot: Meters 3.5 mm circle (about 2.5% of frame) centered on selected focus point
Metering Range
0 to 20 EV (Matrix or center-weighted metering at ISO 100 equivalent, f/1.4 lens, at 20°C/68°F)
2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20°C/68°F)
Exposure Meter Coupling
CPU
Exposure Modes
Aperture-Priority (A)
Auto
Auto (flash off)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S)
Scene Modes
Auto
Auto [Flash Off]
Child
Close-up
Landscape
Night Portrait
Portrait
Sports
Special Effects Modes (night vision; super vivid; pop; photo illustration; toy camera effect; miniature effect; selective color; silhouette; high key; low key)
Exposure Compensation
±5 EV in increments of 1/3 EV in P, S, A, M, Scene, and Night Vision modes
Exposure Lock
Luminosity locked at detected value with AE-L/AF-L button
Picture Control
Landscape
Monochrome
Neutral
Portrait
Selected Picture Control can be modified
Standard
Vivid

Collapse Sensitivity

ISO Sensitivity
ISO 100 -
25,600
Lowest Standard ISO Sensitivity
100
Highest Standard ISO Sensitivity
25,600
High ISO Noise Reduction
Low
Normal
High
Off
Active D-Lighting
On
Off

Collapse Focus/Autofocus

Single-Point AF Mode
Yes
Dynamic AF Mode
Number of AF points: 11 (3D-tracking)
Auto-Area AF Mode
Yes
Autofocus System
Nikon Multi-CAM 1000 autofocus sensor module with TTL phase detection
Detection Range
-1 to 19 EV (ISO 100, 68°F/20°C)
Lens Servo
Autofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used
Focus Lock
Focus can be locked by pressing AE-L/AF-L button
Focus can be locked by pressing shutter-release button halfway (single-servo AF)
Focus Modes
Auto AF-S/AF-C selection (AF-A)
Continuous-servo (AF-C)
Face-Priority AF available in Live View only and D-Movie only
Full-time Servo (AF-A) available in Live View only and D-Movie only
Manual (M) with electronic rangefinder
Normal area available in Live View and D-Movie only
Predictive focus tracking activated automatically according to subject status
Single-servo AF (AF-S)
Wide area available in Live View and D-Movie only
Maximum Autofocus Areas/Points
11
Autofocus Sensitivity
-1 to +19 EV (ISO 100, 20°C/68°F)

Collapse Flash

Built-in Flash
Yes
X-Sync Speed
1/200
Flash Control
TTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering
Flash Sync Modes
Auto
Auto with red-eye reduction
Auto slow sync
Auto slow sync with red-eye reduction
Fill-flash
Rear-curtain sync
Rear-curtain with slow sync
Red-Eye reduction
Red-Eye reduction with slow sync
Slow sync
Off
Flash Compensation
Can be adjusted by -3 to +1 EV in increments of 1/3 EV in P, S, A, M, and scene modes
Flash-ready Indicator
Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
Accessory Shoe
Yes
Nikon Creative Lighting System (CLS)
CLS Supported
Flash Sync Terminal
Sync Terminal Adapter AS-15 (available separately)

Collapse White Balance

White Balance
Auto
Cloudy
Direct Sunlight
Flash
Fluorescent (7 types)
Incandescent
Preset Manual
Shade

Collapse Live View

Live View Shooting
Yes
Live View Lens Servo
Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF)
Live View AF-Area Mode
Face-priority AF
Wide-area AF
Normal-area AF
Subject-tracking AF
Live View Autofocus
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
Live View Scene Auto Selector
Auto mode
Auto (flash off) mode

Collapse Movie

Movie Metering
TTL exposure metering using main image sensor
Movie Maximum Recording Time
20 minutes at highest quality
29 minutes 59 seconds at normal quality
Movie File Format
MOV
Movie Video Compression
H.264/MPEG-4 Advanced Video Coding
Movie Audio Recording Format
Linear PCM
Movie
Full HD 1,920x1,080 / 60 fps
Full HD 1,920x1,080 / 50 fps
Full HD 1,920x1,080 / 30 fps
Full HD 1,920x1,080 / 25 fps
Full HD 1,920x1,080 / 24 fps
HD 1,280x720 / 60 fps
HD 1,280x720 / 50 fps
Movie Audio
Built-in microphone, monaural
Microphone sensitivity can be adjusted

Collapse Monitor

Monitor Size
3.0 in. diagonal
Monitor Resolution
921,000 Dots
Monitor Type
Wide Viewing Angle TFT-LCD
Monitor Angle of View
170 -degree wide-viewing angle
Monitor Adjustments
Brightness adjustment

Collapse Playback

Playback Functions
Auto Image Rotation
Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
Highlights
Histogram Display
Image Comment
Location Display
Movie Playback
Photo Information
Picture Rating
Playback Face Zoom
Playback with Zoom
Playback Zoom Cropping
Slideshow
In-Camera Image Editing
Color Outline
Color Sketch
D-Lighting
Distortion Control
Filter Effects
Fisheye
Image Overlay
Miniature Effect
Monochrome
NEF (RAW) Processing
Painting
Perspective Control
Photo Illustration
Quick Retouch
Red-Eye Correction
Resize
Selective Color
Straighten
Trim

Collapse Interface

Interface
HDMI output: Type C mini-pin HDMI connector
Hi-Speed USB; connection to built-in USB port is recommended
Wi-Fi Functionality
Eye-Fi Compatible
Bluetooth
Yes
Bluetooth Specification Version 4.1

Collapse Menus

Recent Settings
Yes
Supported Languages
Arabic
Bengali
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Marathi
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Tamil
Telugu
Thai
Turkish
Ukrainian
Vietnamese
Date, Time and Daylight Savings Time Settings
Yes
World Time Setting
Yes

Collapse Power

Battery / Batteries
EN-EL14a Rechargeable Li-ion Battery
Battery Life (shots per charge)
1,200 shots (CIPA)
AC Adapter
EH-5b AC Adapter; requires EP-5A Power Connector (available separately)
Battery Charger
MH-24 Quick Charger

Collapse Miscellaneous

Tripod Socket
1/4 in.
Approx. Dimensions (Width x Height x Depth)
4.9 in.
(124 mm)
x 3.9 in.
(98 mm)
x 3.0 in.
(75.5 mm)
Approx. Weight
14 oz.
(395 g)
camera body only
Operating Environment
0–40 °C (+32–104 °F)
Less than 85% (no condensation)
