DIGITALNI VIDEO SNIMAČ DS-7104HUHI-K1

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili DIGITALNI VIDEO SNIMAČ DS-7104HUHI-K1

  large-image

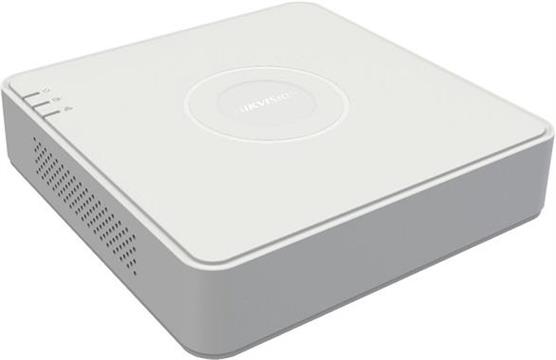

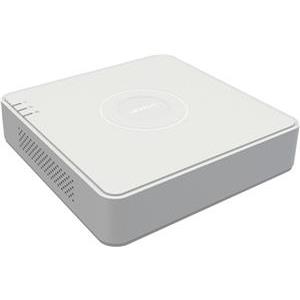

DIGITALNI VIDEO SNIMAČ DS-7104HUHI-K1
Kliknite na sliku za povećanje
thumb
Proizvođač: Hikvision
Šifra: 1413670
Kataloški broj:
Jamstvo: 12
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


DIGITALNI VIDEO SNIMAČ DS-7104HUHI-K1

Glavne karakteristike

  • AUDIO OVER COAX funkcija (prijenos zvuka preko koaksijalnog kabela)

  • REALTIME 1080P

  • analogne, AHD, CVI do 5MP

  • HD-TVI do 8MP

  • HDMI & VGA, CVBS izlaz

  • VCA, line crossing, intrusion, VQD - 2ch; Enhanced VCA mode

- 4ch

STANDARDNI MOD

4 HD/CVBS KAMERE (1. kanal do 8MP) + 2IP (do

8MP) ili 6IP KAMERA (do 8MP)

ENHANCED IP MOD

4 HD/CVBS KAMERE (1. kanal do 8MP) + 4IP (do

8MP) ili 8IP KAMERA (do 8MP)

ANALOGNI I HD-TVI/CVI Video ulaz

4 kanala, BNC sučelje (1.0Vp-p, 75 )

Video kompresija

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Sinkronizirani playback

4ch

Playback rezolucija

8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/ VGA/CIF

VGA/HDMI izlaz

VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz

HDMI: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz

Main stream

8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/ WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream

WD1/4CIF/CIF@25fps (P)/30fps

Video Bit Rate

32Kbps ~ 10Mbps

Audio kompresija

G.711u

Audio ulaz / audio ulaz dvosmjerni

1 kanal RCA (2.0Vp-p, 1K ) - dvosjmerni, 4 kanala preko koaks kabla

Audio izlaz

1 kanal RCA (linearni, 1k )

Sučelje

SATA x 1

Kapacitet

do 6 TB po svakom disku

Sučelje za komunikaciju

1 x RJ45 10M/100M/1000M Ethernet Port 1 x RS-485 Port

USB sučelje

2x USB 2.0

Napajanje

12VDC

Potrošnja struje

≤15 (bezHDD)

Radna temperatura

-10°C ~ 55°C

Masa

1,16KG

Dimenzije

200 × 200 × 48 mm

Za odabrani proizvod nije definirana specifikacija.

Za odabrani proizvod nije unesen niti jedan komentar.
