DIGITALNI VIDEO SNIMAČ iDS-7104HQHI-M1/S

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili DIGITALNI VIDEO SNIMAČ iDS-7104HQHI-M1/S

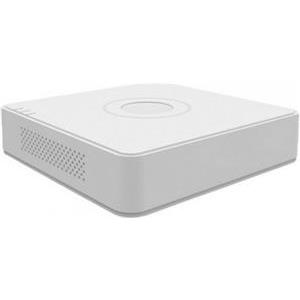

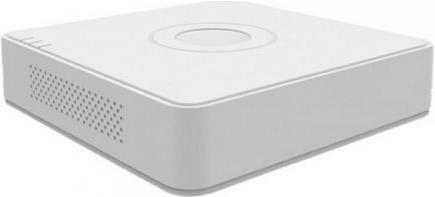

  large-image
DIGITALNI VIDEO SNIMAČ iDS-7104HQHI-M1/S
Kliknite na sliku za povećanje
thumb
Proizvođač: Hikvision
Šifra: 1413675
Kataloški broj:
Jamstvo: 12
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


DIGITALNI VIDEO SNIMAČ iDS-7104HQHI-M1/S

Glavne karakteristike

  • REALTIME 1080P LITE

  • HDMI & VGA,

  • VCA, line crossing, intrusion, VQD, Deep laerning 2.0

  • Audio over coax

  • Detekcija lica i vozila (2ch)

  • Detekcija lažnih alarma (2ch)

STANDARDNI MOD

4 HD/CVBS KAMERE (do 3MP - kanal 1, ostali 2MP)

+ 1IP (do 6MP) ili 5 IP KAMERA (do 6MP)

ENHANCED IP MOD

4 HD/CVBS KAMERE (do 3MP - kanal 1, ostali 2MP)

+ 2IP (do 6MP) ili 6 IP KAMERA (do 6MP)

ANALOGNI I HD-TVI/CVI Video ulaz

4 kanala, BNC sučelje (1.0Vp-p, 75 )

Video kompresija

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Sinkronizirani playback

4ch

Playback rezolucija

4 MP/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

VGA/HDMI izlaz

VGA: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz, 1280

×720/60Hz, 1024 × 768/60Hz

HDMI: 1-ch, 4K (3840 ×2160)/30Hz, 2K (2560 ×1440)/60Hz,

1920 ×1080/60Hz, 1280 ×1024/60Hz, 1280 ×720/60Hz, 1024 ×

768/60Hz

Main stream

3 MP@15fps

1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps

Sub-stream

WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps

Video Bit Rate

32Kbps ~ 10Mbps

Audio kompresija

G.711u

Audio ulaz / audio ulaz dvosmjerni

1 kanal RCA (2.0Vp-p, 1K) 4 x audio over coax

Audio izlaz

1 kanal RCA (linearni, 1k )

Sučelje

SATA x 1

Kapacitet

do 10 TB po svakom disku

Sučelje za komunikaciju

1 x RJ45 10M/100M/Ethernet Port

USB sučelje

2x USB 2.0

Napajanje

12VDC

Potrošnja struje

≤7W (bezHDD)

Radna temperatura

-10°C ~ 55°C

Masa

,8KG

Dimenzije

200 × 200

Za odabrani proizvod nije definirana specifikacija.

Za odabrani proizvod nije unesen niti jedan komentar.
