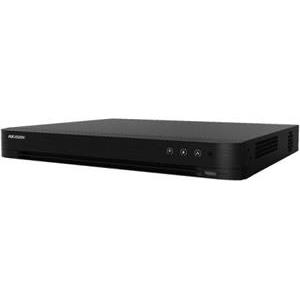

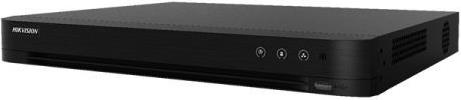

DIGITALNI VIDEO SNIMAČ iDS-7208HUHI-M2/S
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili
DIGITALNI VIDEO SNIMAČ iDS-7208HUHI-M2/S
Kliknite na sliku za povećanje
Proizvođač:
Hikvision
Šifra:
1413683
Kataloški broj:
Jamstvo:
12
DIGITALNI VIDEO SNIMAČ iDS-7208HUHI-M2/S/A
Glavne karakteristike
REALTIME 1080P
analogne, AHD, CVI i HD-TVI
HDMI & VGA, CVBS izlaz, VCA, line crossing, intrusion, VQD, Deep learning
Detekcija lica i vozila (1 ch)
Detekcija lažnih alarma (4 ch)
STANDARDNI MOD
8 HD/CVBS KAMERE (do 8MP) + 4IP ili 12IP KAMERA (do 8MP)
ENHANCED IP MOD
8 HD/CVBS KAMERE (do 8MP) + 8IP ili 16IP KAMERA (do 8MP)
ANALOGNI I HD-TVI/CVI Video
ulaz
8kanala, BNC sučelje (1.0Vp-p, 75 )
Video kompresija
H.265 Pro+/H.265 Pro/H.265/ H.264+/H.264
Sinkronizirani playback
8ch
Playback rezolucija
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25,
720p60, 720p50, 720p30, 720p25
VGA/HDMI izlaz
VGA: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz,
1280 ×720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 ×2160)/30Hz, 2K (2560
×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60Hz,
1280 ×720/60Hz, 1024 × 768/60Hz
Main stream
8MP@8fps,5 MP@12fps, 4MP@15fps, 3 MP@18fps
/1080p/ 720p/WD1/4CIF/VGA/ CIF@25fps (P)/30fps
Sub-stream
WD1/4CIF/CIF@25fps(P)/30fps(N)
Video Bit Rate
32Kbps ~ 10Mbps
Audio kompresija
G.711u
Audio ulaz / audio ulaz dvosmjerni
1 kanal RCA (2.0Vp-p, 1KOhm
Audio izlaz
1 kanal RCA (linearni, 1kOhm )
Sučelje
SATA x 2
Kapacitet
do 10 TB po svakom disku
Sučelje za komunikaciju
1 x RJ45 10M/100M Ethernet Port 1 x RS-485 Port
USB sučelje
1x USB 2.0, 1x USB 3.0
Napajanje
12VDC
Potrošnja struje
≤15W (bezHDD)
Radna temperatura
-10°C ~ 55°C
Masa
2KG
Dimenzije
Za odabrani proizvod nije definirana specifikacija.
Za odabrani proizvod nije unesen niti jedan komentar.
DIGITALNI VIDEO SNIMAČ iDS-7208HUHI-M2/S
DIGITALNI VIDEO SNIMAČ iDS-7208HUHI-M2/S/A
