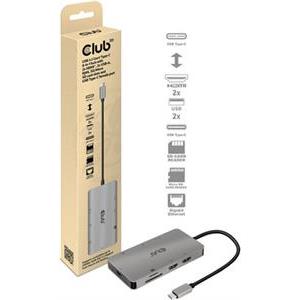

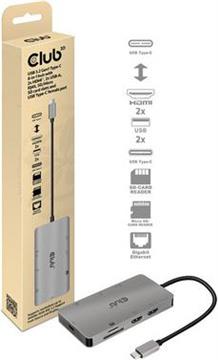

Docking station Club 3D 8-in-1, USB-C, 2x HDMI, 2x USB-A, SD+TF, RJ45, PD 100W
| Proizvođač: | Club 3D |
| Šifra: | 1390849 |
| Kataloški broj: | CSV-1593 |
| Jamstvo: | 24 |
| Raspoloživost: |
(Dobavljivo)
|
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
96,10 €
**kod nonSEPA transakcija naplaćujemo naknadu banke
već od 2,97 €/mjesečno
Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC
Features
Upstream:
USB 3.2 Gen1 Type-C Male(Connect to host)
Support DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps(8.1Gbps per lane), downward compatible with DP1.2 Alt mode
Support DSC
Note: To get max bandwidth, the host should support DP1.4 Alt mode with DSC format.
Downstream:
HDMI™x2
Support HDMI™ max 4K/60Hz, 4:4:4, 8bit with 18Gbps Bandwidth
Support Dual max 4K/30Hz under MST mode (Windows™ System)
Support Dual max 4K/60Hz under SST mode (Mac™ System ONLY)
Support 8/10/12 bit color depth output
Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/YCbCr420
Support HDCP 2.2&HDCP1.4
Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI™ is 4k/60Hz (dual 4K/30Hz); When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz (dual 1080P/60Hz) due to bandwidth limitation.
USB3.2 Gen1 Type-A
1x USB3.2 Type-A port supports BC 1.2 with max 7.5W(5V/1.5A) downstream charging, 1x USB Type-A share max 8W (5V/1.6A) downstream charging.
Max 5Gbps bandwidth per USB-A port
SD/Micro SD
Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
Allow 2 card slots to work simultaneously
RJ45 (Gigabit Ethernet)
Support 10M/100M/1000M
USB 3.2 Gen1 Type-C Female (for PD Charging)
Supports PD Charging 100W (20V/5A)
Support for Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host
Za odabrani proizvod nije definirana specifikacija.
Za odabrani proizvod nije unesen niti jedan komentar.
