Full power protection.
- Electrical noise suppression, voltage and overvoltage peak suppression, autonomy, are common
requirements to many UPS types. This UPs provides a wider voltage range capability, in addition to the
aforementioned characteristics. Within this wide voltage range, the load is supplied without any support
from the battery. This feature not only protects your computer, but also improve and increases battery
lifetime.

Cold start function (DC Start).

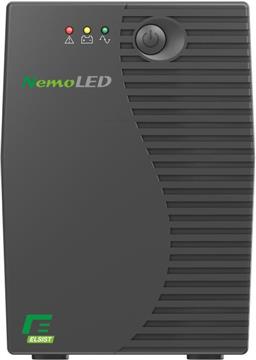

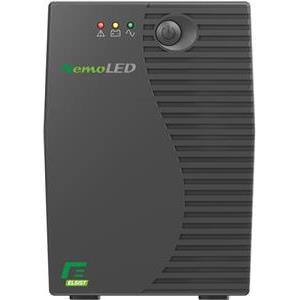

- All NEMOLED models are equipped with cold start function, which means that even if the power supply is
unplugged, the UPS can be activated simply by pushing the ON / OFF switch and will operated supplied
by the battery.

Autorestart.
- Upon returning the Mains, the UPS will restart automatically.

Overload protection.
- The internal microprocessor controls the load status in any operating conditions. In the event of overload
or short circuit, your UPS will beep or will automatically turn off to avoid undesired damage to the load.

Modem connection and protection.
- Two special connectors RJ45/RJ11, will protect your Modem or your LAN 10Base-T network from any noise
generated by the phone line.

Specifications
Input
- Input Voltage: 220-230-240Vac
- Input voltage range: 162-290Vac
- Frequency: 50/60Hz (auto selection)

Output
- Output Voltage: 230Vca
- Wave type: Simulated sine wave
- Output voltage range: 10%
- Frequency: 50/60Hz (following input frequency)
- Power (VA/W): 800 / 360
- Switching time: 2-6 mS tpc, 10ms max
- Outlet Schuko: 2

- Noise Filtering: Yes

BATTERY
- Autonomy time typ.: 10 min
- Battery Voltage: 1x 12V/7Ah
- Type: Maintenance-free, sealed lead-acid
- Recharge time: 6-8 hours at 90% after a deep discharge

PROTECTION
- Overvoltage/Undervoltage Switch to “Battery Mode”
- Overload/Shortcircuit Electronic limit (both on “Mains mode” and on “Battery Mode”)

AUDIBLE ALARM
- Battery mode: 1 time every 10 sec
- Battery low: 1 time per sec
- Overload: 1 time every 0,5 sec
- Fault: continuosly

MECHANICAL
- Dimensions (LxPxH) mm: 101x282x142
- Weight (Kg): 3,5

ENVIRONMENT
- Ambient Temperature: 0-40°C ,Humidity 0-90% without condensing, altitude max 3000 mt.
- Audible Noise:
