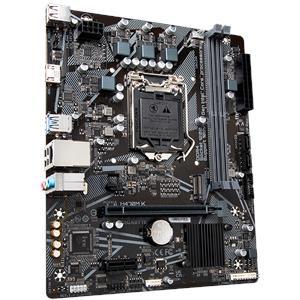

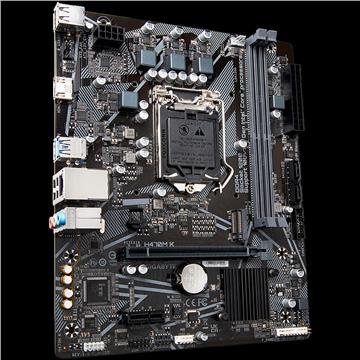

GIGABYTE Mainboard Desktop H470M K (LGA1200, 2x DDR4 max. 64, 1x PCI-E 3.0 x16x16, 1x PCI-E 3.0 x1x1, 1x M.2 3.0, 2x SATA, 2x USB 3.2 Gen1, 4x USB 2.0, 1x HDMI, GbE LAN, mATX, Retail)
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili GIGABYTE Mainboard Desktop H470M K (LGA1200, 2x DDR4 max. 64, 1x PCI-E 3.0 x16x16, 1x PCI-E 3.0 x1x1, 1x M.2 3.0, 2x SATA, 2x USB 3.2 Gen1, 4x USB 2.0, 1x HDMI, GbE LAN, mATX, Retail)
| Proizvođač: | Gigabyte |
| Šifra: | 1388275 |
| Kataloški broj: | H470M K |
| Jamstvo: | 36 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
GIGABYTE Mainboard Desktop H470M K (LGA1200, 2x DDR4 max. 64, 1x PCI-E 3.0 x16x16, 1x PCI-E 3.0 x1x1, 1x M.2 3.0, 2x SATA, 2x USB 3.2 Gen1, 4x USB 2.0, 1x HDMI, GbE LAN, mATX, Retail)
Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
Supports 11th/10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
CPU
LGA1200 package:
11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® H470 Express Chipset
Memory
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot:
Supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
1 x M.2 connector:
Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 5
Intel® Optane™ Memory Ready
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x HDMI 1.4 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
| Osnovne karakteristike | |
|---|---|
| Socket: | 1200 |
| Format ploče: | ATX |
| CPU podrška: |
Intel 11. gen Intel 10. gen |
| Memorija: | DDR4 |
| Chipset: | Intel H470 |
