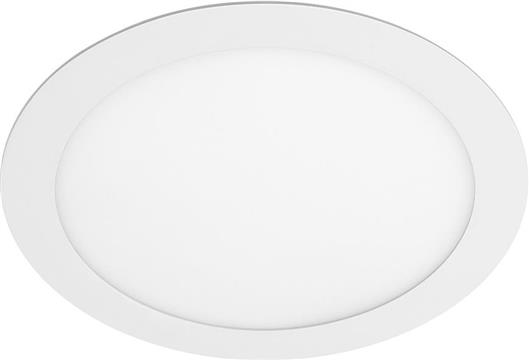

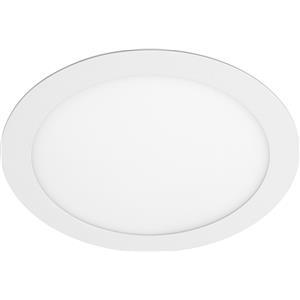

GTV LED panel ORIS PLUS 13W, built-in, round, 3000K

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili GTV LED panel ORIS PLUS 13W, built-in, round, 3000K

Proizvođač: GTV
Šifra: 1385520
Kataloški broj: LD-ORW13W-CBP
Jamstvo: 24
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


The built-in LED panel is intended for installation in gypsum boards or suspended ceilings. With a luminosity of 1020 lumens (lm) and a power of 13W, it represents the equivalent of a 65W halogen lamp. It is made of aluminum housing for optimal heat dissipation and matte lighting surface for better light scattering. Together with the fastening clamps, the height of the panel is 22mm. the power supply can be moved to the side of the panel during installation so that it does not occupy additional depth (height). Power supply for power conversion is included. We connect it directly to the 220V network. Installation is quick and easy: first make sure that there is no current in the network, then use a terminal block to connect the power supply to the mains and only then the power supply with a quick connection to the panel (you do not need any tools) install the panel in the prepared installation surface using two support clamps release the current back into the mains and check the operation of the panel Technical specifications: LED type: SMD Voltage: AC200-240V 50 / 60Hz Power: 13W Lighting angle: 120 ° Luminance (in lumens): 1020 lm Dimensions: O168mm x 22mm Installation diameter: O153-156mm Weight: 350? Panel shape: round Frame color: white Protection standard: IP20 Energy class: A / A ++ Lifetime: 40,000 hours Number of on / off cycles: > 20,000 CRI - color rendering index: ?80 Material: aluminum + PMMA + PS Power supply: YES, attached Dimmer compatibility: NO, power supply needs to be replaced Operating temperature range: -20 ° + 45 °

Za odabrani proizvod nije definirana specifikacija.

Za odabrani proizvod nije unesen niti jedan komentar.


GTV LED panel ORIS PLUS 13W, built-in, round, 3000K GTV LED panel ORIS PLUS 13W, built-in, round, 3000K The built-in LED panel is intended for installation in gypsum boards or suspended ceilings. With a luminosity of 1020 lumens (lm) and a power of 13W, it represents the equivalent of a 65W halogen lamp. It is made of aluminum housing for optimal heat dissipation and matte lighting surface for better light scattering. Together with the fastening clamps, the height of the panel is 22mm. the power supply can be moved to the side of the panel during installation so that it does not occupy additional depth (height). Power supply for power conversion is included. We connect it directly to the 220V network. Installation is quick and easy: first make sure that there is no current in the network, then use a terminal block to connect the power supply to the mains and only then the power supply with a quick connection to the panel (you do not need any tools) install the panel in the prepared installation surface using two support clamps release the current back into the mains and check the operation of the panel Technical specifications: LED type: SMD Voltage: AC200-240V 50 / 60Hz Power: 13W Lighting angle: 120 ° Luminance (in lumens): 1020 lm Dimensions: O168mm x 22mm Installation diameter: O153-156mm Weight: 350? Panel shape: round Frame color: white Protection standard: IP20 Energy class: A / A ++ Lifetime: 40,000 hours Number of on / off cycles: > 20,000 CRI - color rendering index: ?80 Material: aluminum + PMMA + PS Power supply: YES, attached Dimmer compatibility: NO, power supply needs to be replaced Operating temperature range: -20 ° + 45 °<table style="border:none;width:60%"></table>
0.00 0
GTV
GTV
15.20 EUR
