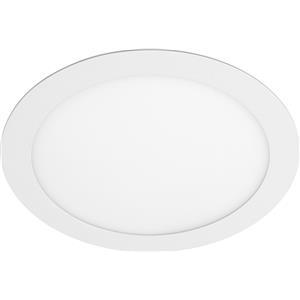

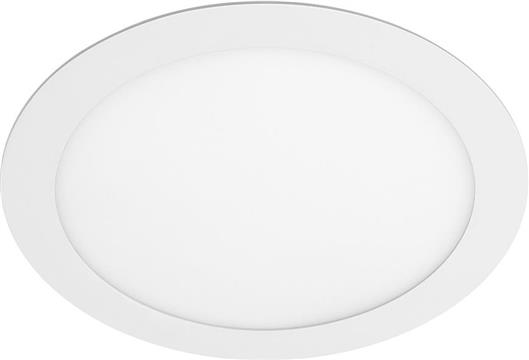

The built-in LED panel is intended for installation in gypsum boards or suspended ceilings. With a luminosity of 1520 lumens (lm) and a power of 19W, it represents the equivalent of a 100W halogen lamp. It is made of aluminum housing for optimal heat dissipation and matte lighting surface for better light scattering. Together with the fastening clamps, the height of the panel is 22mm. the power supply can be moved to the side of the panel during installation so that it does not occupy additional depth (height). Power supply for power conversion is included. We connect it directly to the 220V network. Installation is quick and easy: first make sure that there is no current in the network, then use a terminal block to connect the power supply to the mains and only then the power supply with a quick connection to the panel (you do not need any tools) install the panel in the prepared installation surface using two support clamps release the current back into the mains and check the operation of the panel Technical specifications: LED type: SMD Voltage: AC200-240V 50 / 60Hz Power: 19W Lighting angle: 120 ° Luminance (in lumens): 1520 lm Dimensions: O225mm x 22mm Installation diameter: O204-206mm Weight: 550? Panel shape: round Frame color: white Protection standard: IP20 Energy class: A / A ++ Lifetime: 40,000 hours Number of on / off cycles: > 20,000 CRI - color rendering index: ?80 Material: aluminum + PMMA + PS Power supply: YES, attached Dimmer compatibility: NO, power supply needs to be replaced Operating temperature range: -20 ° + 45 °
