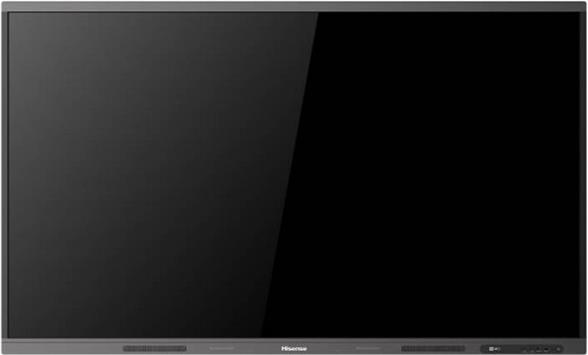

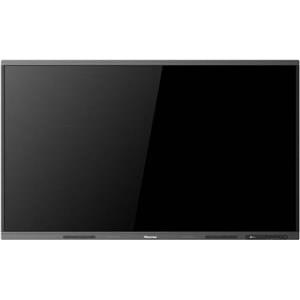

Interaktivna screenska plošča


Size: 75''
Osvetlitev ozadja: D-LED
Resolution: 3840 x 2160
Svetlost: 350cd/m2 (tip.)
contrastno ratio: 1200:1 (tip.)
response time: 8ms
Frekvenca osveževanja: 60Hz
viewing angle: 178°(V) / 178°(V)
Življenjska doba: 50.000 ur
Colour lestvica: 72%
colour screen: 1.07B(10bit)


system


OS: Android 13.0
Language: kitajski, angleški, poljski, nemški, francoski, italijanski, španski, finski, norveški, švedski, tajski, indonezijski, japonski


speaker


built and speaker: 2x15W+20W


Connectivity


WI-FI: IEEE 802.11a/b/g/n/ac/ax (2.4G and 5G), IEEE 802.11a/b/g/n/ac (2.4G and 5G)
Bluetooth: BT5.1
NFC: Yes
input: HDMI(2.0) and x3, OPS (izbirno) x1, LAN x1 (1000baseT R), USB3.0 x3, Type-C x1 (support PD 65W), Touch x1, audio input x1, RS-232 input x1( RJ45)
output: RS232 OUT x1 (RJ45), HDMI output x1, S/PDIF output x1, audio output x1


Power


Zahteve for power supply: AC 100 into ~ 240 V, 50/60 Hz
Energy Use without OPS: 350 W (maks.)
Consumption into stanju pripravljenosti: <0,5 W


Dotik


Category zaznavanja: infrardeči frame on dotik
Površinska protection: steklo proti bleščanju
Infrardeči dotik: ?20 pixels
Natančnost dotika: 90 % (±1 mm)
Teoretični kliki: Neomejeno
Najmanjši predmet on dotik: ?2 mm
Windows 10/8/7, Android: Multi Touch


Fizično


Colour of the case: black and brown
Size izdelka (Š x into x G): 1710 x 1025,5 x 126 mm / 67,3 x 40,4 x 5 palcev
Size paketa (Š x into x G): 1850 × 1165 x 240 mm / 72,8 x 45,9 x 9,4 palcev
Neto Weight: 45,3 kg / 99,89 lbs
Weight paketa: 59,5 kg / 131,2 lbs
VESA: 600x600 mm, vijak 4-M8



Neobvezno


Osnovno: mobilni voziček, OPS


Kaj je into škatli


Navodila for uporabo
Pero x 2
yesljinec
Wireless Cast x 1 (izbirno)
power cable
Battery x 2
Stenski nosilec x 1

Interactive display panel


Size: 75''
Backlight: D-LED
Resolution: 3840 x 2160
Brightness: 350cd/m2 (typ.)
Contrast ratio: 1200:1 (typ.)
Response time: 8ms
Refresh rate: 60Hz
Viewing angle: 178°(V) / 178°(V)
Lifetime: 50,000 hours
Color scale: 72%
Screen colors: 1.07B(10bit)


System


OS: Android 13.0
Language: Chinese, English, Polish, German, French, Italian, Spanish, Finnish, Norwegian, Swedish, Thai, Indonesian, Japanese


Loudspeaker


Built-in speaker: 2x15W+20W


Connectivity


WI-FI: IEEE 802.11a/b/g/n/ac/ax (2.4G and 5G), IEEE 802.11a/b/g/n/ac (2.4G and 5G)
Bluetooth: BT5.1
NFC: Yes
Input: HDMI(2.0) IN x3, OPS (optional) x1, LAN x1 (1000baseT R), USB3.0 x3, Type-C x1 (support PD 65W), Touch x1, Audio input x1, RS-232 input x1( RJ45)
Output: RS232 OUT x1 (RJ45), HDMI output x1, S/PDIF output x1, Audio output x1


Power


Power requirements: AC 100 V ~ 240 V, 50/60 Hz
Power consumption without OPS: 350 W (max.)
Standby consumption: <0.5W


Touch


Detection Type: Infrared Touch Frame
Surface protection: anti-glare glass
Infrared touch: ?20 points
Touch accuracy: 90% (±1mm)
Theoretical clicks: Unlimited
Smallest object to touch: ?2 mm
Windows 10/8/7, Android: Multi Touch


Physically


Body color: black and brown
Product Size (W x H x D): 1710 x 1025.5 x 126 mm / 67.3 x 40.4 x 5 inches
Package Size (W x H x D): 1850 x 1165 x 240 mm / 72.8 x 45.9 x 9.4 inches
Net weight: 45.3 kg / 99.89 lbs
Package weight: 59.5 kg / 131.2 lbs
VESA: 600x600mm, 4-M8 screw



Optional


Basic: mobile cart, OPS


What's in the box


Instructions for use
Pen x 2
Remote control
Wireless Cast x 1 (optional)
Power cable
Battery x 2
Wall bracket x 1
