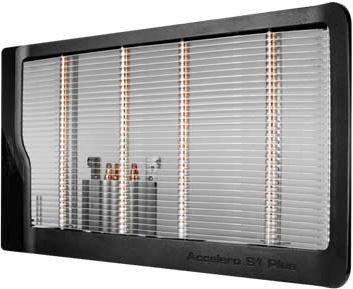

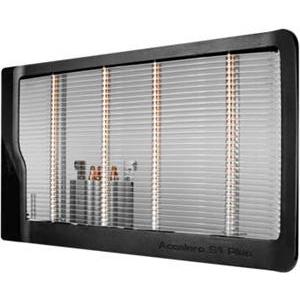

The Accelero S1 PLUS may be the best performing passive VGA cooler on the planet. It is a must-have cooler for all silence enthusiasts. The versatile RAM and VR cooling set and optional S1 PLUS Turbo Module further extends its compatibilities all the way to high-end VGA cards.


Quiet


Absolute Silence


As a passive cooler, the Accelero S1 PLUS is noise-free while keeping the graphic card working at normal temperature! It helps to cool your graphic card without any disturbance to your work or entertainment.

Noise Level on AMD Radeon HD 7770


Accelero S1 PLUS

0 Sone

3-Slot Generic Cooler (at 2,500 RPM)

1.75 Sone

Better




Wide Compatibility


Due to its RAM and VR heatsink set and flexible mounting plate design, the Accelero S1 PLUS is compatible with over 80 different models of midrange to high-end graphic cards.

* The compatibility list is based on AMD Radeon and NVIDIA's reference board layout only. ARCTIC holds no responsibility for incompatibility on non standard cards. Please check the height restriction drawing before purchase.

Compatibility





Efficient Passive Cooling


Thanks to the passive cooling technology with patent DE 20200600, the Accelero S1 PLUS allows more air to pass through the fins than any other passive coolers. The heat from the VGA card can be efficiently dispersed.


With the add-on fan S1 PLUS Turbo Module equipped, the cooling capacity of the Accelero S1 PLUS can be boosted up to 120 Watts, which is adequate to cool some high-end VGA cards including AMD Radeon HD 6870 and NVIDIA GeForce GTS 250.


Cooling Performance at AMD Radeon HD 7770:


Accelero S1 PLUS

61oC

3-slot Generic Cooler (at 2,500 RPM)

72oC

Better

Ambient temperature: 25oC




* S1 PLUS Turbo Module is required for sufficient cooling capacity on the following VGA cards.


NVIDIA GeForce GTS 250, 240(OEM), 150(OEM), GT 9800GTX+, 9800GTX, 9800GT, 9600GT, 8800GTS 512(G92), 7950GT


AMD Radeon HD 7870, 7850, 6870, 6850, 6790, 5850, 5830, 4870, 4850, 4830, 1900XTX, 1950Pro, 1950GT, 1900XTX, 1900XT, 1800XT


Heatpipe O 6 mm x 4

Heatsink Material Aluminum fins x 32, thickness 0.4 mm

Dimensions (Product) 230 (L) x 135 (W) x 42 (H) mm

Dimensions (Packaging) 278 (L) x 194 (W) x 46 (H) mm

Net Weight 410 g



Accessories

Heatsink 12 pcs

Screw (M2) 4 pcs

Washer 4 pcs

Spacer (3.5 mm) 4 pcs

Spacer (4.0 mm) 4 pcs

G-1 Thermal Glue (1.5 g Grey Compound) 1 bag

G-1 Thermal Glue (1.5 g White Compound) 1 bag

Mixing Wand 1 pc

VGA Bracket 1 pc



itemnumber DCACO-V470001-BL

UPC 0872767004658

Gross Weight 0.92 kg
