Intel LGA 775 / 1155 / 1156
AMD Socket 754 / 939 / 940 / AM2 / AM2+ / AM3

Dimensions 109(L) x 107(W) x 63(H) mm
Weight(1) 750g
Base Material Pure Copper
Dissipation Area 2,890?

Bearing Type 2 Ball-Bearing
Speed(2) 1,350rpm ± 10% ~ 2,400rpm ± 10%
Noise Level(3) 17.0dBA ± 10% ~ 24.0dBA ± 10%

(1) The maximum weight for a cooler is specified as 450g for Intel Socket 775 and AMD Socket AM2/754/939/940. Special care
 should be taken when moving a computer equipped with a cooler which exceeds the relevant weight limit. Zalman is not
 responsible for any damage that occur while moving a computer.
(2) The fan operates at 2,650rpm(27.5dBA±10%) if directly connected to the motherboard’s power connector without the use of
 FAN MATE 2.
(3) Measured 1m distance away from source.
Dimensions : 70(L) x 26(W) x 26(H) mm Weight : 20g Output Voltage : 5V ~ 11V ± 2%
Allowable Power : 6W or lower Connector : 3-Pin

Does not generate noise or vibration in Silent Mode.

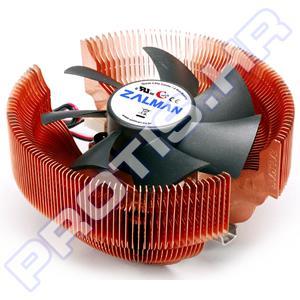

Pure copper base materials ensure excellent heat dissipation.
Compatible with single and dual core CPUs for Intel Socket 775 and AMD Sockets AM2/754/939/940.
92mm fan inside the heatsink maximizes airflow.
Adjustable fan speed controller(FAN MATE 2) enables control of noise and fan performance.


Common Components
- Cooler (CNPS7000C-Cu)
- Thermal Grease
- Clip A
- Installation Bolt (4 bolts)
- Clip B
- Clip Lever
- Fan Speed Controller (FAN MATE 2)
- Cable for FAN MATE 2
- Double-Sided Tape (for FAN MATE 2 Attachment)
- User’s Manual (in English and Korean)

Components for Intel Socket 775
- Clip Support for Socket 775
- Backplate for Socket 775
- Clip Support Fixing Bolt (4 bolts)

Component for AMD Socket AM2+/AM2/754/939/940
* No additional components
