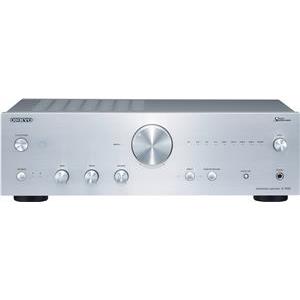

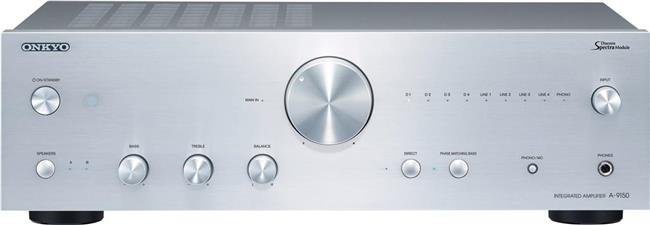

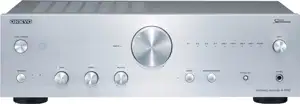

A-9150
Integrated Stereo Amplifier

Take Music Further with True Fidelity

Building on acclaim for the award-winning A-9010, Onkyo again raises the bar for musicality in the entry class with its A-9150 Integrated Stereo Amplifier. Unique technologies coalesce around a refined amplification system to deliver outstanding transient response, superb dynamics, lifelike soundstaging, and nuanced articulation of your favorite analog or digital music. Key to this sense of realism is Discrete SpectraModule™, which boasts a slew rate of more than 500 V/µs for flat linearity up to megahertz bandwidth. Rediscover the vitality of analog with MM/MC phono input served by dedicated equalizers on a separate circuit board, with custom head-amp operating in discrete configuration for MC signals. Listeners with big CD libraries will discover new life in the format with AKM’s premium 768 kHz/32-bit DAC (AK4452) enhanced by DIDRC Filter, an original circuit technology that cleanses signals of high-frequency noise. Backed by 70 years’ experience in hi-fi design, the A-9150 invites you inside the energy of every musical performance.

Key Features

Nuanced Musicality Delivered with Discrete SpectraModule™
Dedicated MM/MC Phono Circuit Board
Customized High-Current Transformer and Custom Audio-Grade Capacitors
DIDRC Filter and Hi-Grade DAC for Natural Sound
Solid Build with High-grade Terminals

------------------------------------------

HIGHLIGHTS

Refined Power Amplification Circuitry with Discrete SpectraModule™
Dedicated MM/MC Circuit Board and High Quality Discrete Head Amp
High Current Power Supply
Natural Music Reproduction with Hi-Grade DAC and DIDRC Filter
Robust Flat Chassis
Quality Audio Terminals

ADVANCED FEATURES

60 W/Ch (4 ?, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, IEC)
Discrete SpectraModule Produces High Instantaneous Voltage for Immersive Soundstaging, Improved Instrument Separation, and Lively Transient Response
DIDRC Filter Prevents Ultra-high-frequency Distortion Affecting Audible Sound
High Current Power Supply Transformer and Two Hi-Grade Customized Capacitors
High-Current Low-Impedance Drive for Enhanced Speaker Control
Optimum Gain Volume Control Circuitry Isolates Signal from Noise Floor to Prevent Distortion at Lower Volume
Symmetrical L/R Channel Layout with Equal Signal-path Lengths to Minimize Stereo Playback Errors
Isolated Processing, Pre-amplification, and Power Amplification Circuitry Reduces Electrical Interference on Audio Signal
Large Extruded Aluminum Heat Sink
AKM (AK4452) 768 kHz/32-bit Digital-to-Analog Converter
Direct Mode for Reproduction Faithful to Original Source
Front-panel A/B Speaker Drive Selector
Available in Black or Silver Finish

INPUTS AND CONNECTIONS

4 Gold-plated Analog RCA Audio Inputs (Rear)
2 Optical Digital Inputs (192 kHz/24-bit Capable)
2 Gold-plated Coaxial Digital Audio Inputs (192 kHz/24-bit Capable)
2 Pairs of Gold-plated Speaker Posts (A+B)
Gold-plated Phono Input (MM/MC) to Suit Any Turntable
6.3 mm Headphone Jack
Gold-plated Main Input
Gold-plated Pre Out
RI (Remote Interactive) Remote Control Input

ADDITIONAL FEATURES

Tone Controls (Bass/Treble/Balance)
Aluminum Front Panel and Aluminum Volume Control Knob
Rigid Steel Chassis to Reduce Resonance
Stable Isolator Feet Minimize Vibration-borne Interference
Efficient 0.2 W Power Consumption on Standby
Full-sized and Full-function RI Remote Control
