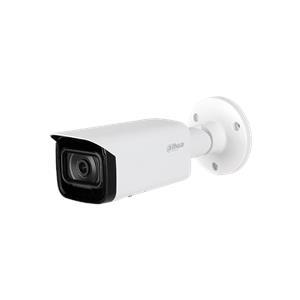

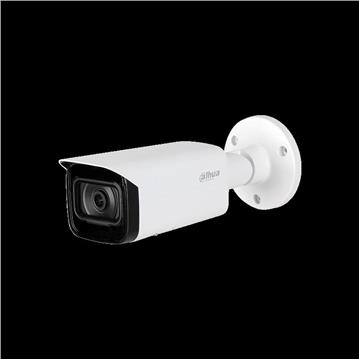

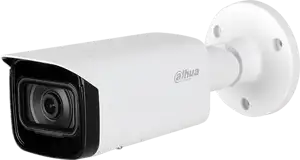

IP Kamera Dahua HFW5541T-ASE 5MP WIZZMIND Human & Vechile detection, . 5 MP , Smart AI. Smart IR do 80 metara.E-PoE do 300 metara. Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card., ePoE; IP67 and IK10 protection.,SMD 3.0. 5MP IR Fixed-focal Bullet WizMind Network Camera> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.>Outputs max. 5MP (2592 × 1944)@20 fps , and supports 4MP (2688 × 1520)@25/30 fps.>H.265 codec, high compression rate, ultra-low bit rate.>Built-in IR LED, and the max. illumination distance is 80 m.>ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.>Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.>Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.>Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.>ePoE; IP67 and IK10 protection.>SMD 3.0.CameraImage Sensor1/2.7" CMOSMax. Resolution2592 (H) × 1944 (V)ROM128MBRAM512MBScanning SystemProgressiveElectronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 sMin. Illumination0.005 lux@F1.6 (Color, 30 IRE)0.0005 lux@F1.6 (B/W, 30 IRE)0 lux (Illuminator on)S/N Ratio>56 dBIllumination Distance80 m (262.47 ft) (IR)Illuminator On/Off ControlAuto; manualIlluminator Number4 (IR LED)Pan/Tilt/Rotation RangePan: 0°–360°Tilt: 0°–90°Rotation: 0°–360°LensLens TypeFixed-focalLens MountM12Focal Length2.8 mm; 3.6 mm; 6 mm; 8 mm; 12 mmMax. ApertureF1.6Field of View2.8 mm: Horizontal: 102°; Vertical: 71°; Diagonal: 131°3.6 mm: Horizontal: 84°; Vertical: 58°; Diagonal: 110°6 mm: Horizontal: 51°; Vertical: 37°; Diagonal: 63°8 mm: Horizontal: 38°; Vertical: 28°; Diagonal: 48°12 mm: Horizontal: 25°; Vertical: 18°; Diagonal: 30°Iris ControlFixedClose Focus Distance2.8 mm: 0.9 m (2.95 ft)3.6 mm: 1.6 m (5.25 ft)6 mm: 3.1 m (10.17 ft)8 mm: 4.5 m (14.76 ft)12 mm: 10.3 m (33.79 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm56 m (183.73 ft)22.4 m (73.49 ft)11.2 m (36.75 ft)5.6 m(18.37 ft)3.6 mm80 m (262.47 ft)32 m (104.99 ft)16 m(52.49 ft)8 m(26.25 ft)6 mm120 m (393.70 ft)48 m (157.48 ft)24 m(78.74 ft)12 m(39.37 ft)8 mm160 m (524.93 ft)64 m (209.97 ft)32 m (104.99 ft)16m(52.49 ft)12 mm240 m (787.40 ft)96 m (314.96 ft)48 m (157.48 ft)24 m(78.74 ft)Smart EventIVSAbandoned object; missing objectHeat MapYesProfessional, intelligentIVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detectionSMD 3.0Less false alarm, longer detection distanceFace DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time settingPeople CountingSupport the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosVideoVideo CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+AI CodingAI H.265; AI H.264Video Frame RateMain stream: 2592 × 1944@(1-20 fps)/2688 × 1520@(1-25/30 fps) /1920 × 1080@(1-50/60 fps)Sub stream: D1@(1–25/30 fps)Third stream: 1080p@(1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability3 streamsResolution2592 × 1944; 2688 × 1520; 2304×1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Bit Rate ControlCBR/VBRVideo Bit RateH.264: 3 kbps–20480 kbpsH.265: 3 kbps–20480 kbpsDay/NightAuto(ICR)/Color/B/WBLCYesHLCYesWDR120 dBScene Self-adaptation (SSA)YesWhite BalanceAuto; natural; street lamp; outdoor; manual; regional customGain ControlAuto; manualNoise Reduction3D NRMotion DetectionOFF/ON (4 areas, rectangular)Region of Interest (RoI)Yes (4 areas)DefogYesImage Rotation0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)MirrorYesPrivacy Masking8 areasAlarmAlarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; SMD; people counting in area; stay detection; people counting; security exceptionNetworkNetwork PortRJ-45 (10/100 Base-T)SDK and APIYesCyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgradeNetwork ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMPInteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2PUser/Host20 (Total bandwidth: 80 M)StorageFTP; SFTP; Micro SD card (support max. 256 GB); NASBrowserIE: IE 8 and laterChromeFirefoxManagement SoftwareSmart PSS; DSS; DMSSMobile ClientiOS; AndroidCertificationCertificationsCE-LVD: EN60950-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL:UL60950-1CAN/CSA C22.2 No.60950-1-07PortAudio Input1 channel (RCA port)Audio Output1 channel (RCA port)Alarm Input1 channel in: 5 mA 3–5 VDCAlarm Output1 channel out: 300 mA 12 VDCPowerPower Supply12 VDC/PoE (802.3af)/ePoEPower ConsumptionBasic: 2.4 W (12 VDC); 3 W (PoE)Max. (H.265 + three streams + intelligence on + IR on ): 7.1 W (12 VDC); 8.4 W (PoE)EnvironmentOperating Temperature–40 °C to +60 °C (–40 °F to +140 °F)Operating Humidity?95%Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)ProtectionIP67; IK10StructureCasingMetalProduct Dimensions244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99") (L × W × H)
