Ispravljač 12V, 12,5A, Meanwell LRS-150-12


  large-image
Ispravljač 12V, 12,5A, Meanwell LRS-150-12
Kliknite na sliku za povećanje
thumb
Najprodavanije
Najpopularnije
Proizvođač: Meanwell
Šifra: 1318436
Kataloški broj: LRS-150-12
Jamstvo: 12
Raspoloživost: Dobavljivo (Dobavljivo)
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod

25,20 €

Načini plaćanja online

Popust 10%
25,20 €

Transakcijski račun
Popust 9%
25,48 €

Kriptovalute
Popust 8%
25,76 €

Maestro, MasterCard, Visa
Popust 6%
26,32 €

Union, PBZ Maestro/Visa Inspire 2-6 rata
Popust 5%
26,60 €

Diners, ZABA Master/Visa 2-6 rata, ERSTE Master/Visa/Maestro 2-6 rata
Popust 4%
26,88 €

Diners 2-12 rata, PBZ Visa Inspire/Maestro 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
27,16 €

ZABA Master/Visa 7-12 rata
Popust 2%
27,44 €

ERSTE Master/Visa/Maestro 2-6 rata, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
28,00 €

ZABA Master/Visa 13-24 rate, Diners 13-24 rate

Načini plaćanja u trgovini

Popust 10%
25,20 €

Novčanice, Transakcijski račun
Popust 9%
25,48 €

Maestro, MasterCard, Visa
Popust 7%
26,04 €

PBZ Maestro/Visa Inspire 2-6 rata
Popust 6%
26,32 €

RBA Master/Visa 2-12 rata
Popust 5%
26,60 €

Diners, ZABA kartice 2-6 rata, Diners 2-6 rata, ERSTE Maestro/Visa/Master 2-8 rata, PBZ Maestro/Visa Inspire 7-12 rata
Popust 4%
26,88 €

ZABA Master/Visa 7-12 rata, Diners 7-12 rata, PBZ Visa Premium 2-6 rata
Popust 3%
27,16 €

ERSTE Maestro/Visa/Master 9-12 rata
Popust 2%
27,44 €

Diners 13-24 rate, PBZ Visa Premium 7-12 rata
Popust se ne obračunava
28,00 €

ZABA Maestro/Visa 7-12 rata, ZABA Visa 13-24 rate, ZABA Master 13-36 rata, Diners 25-36 rata

*MBNET kartice (Maestro, Visa, Mastercard) kojima je moguće plaćanje na rate izdane od Slatinske banke, Istarske kreditne banke, Sberbanke, KentBank i Agram banke
**kod nonSEPA transakcija naplaćujemo naknadu banke

već od 0,78 €/mjesečno

Odabrali ste prikaz cijena za gotovinsko plaćanje - prikaži MPC

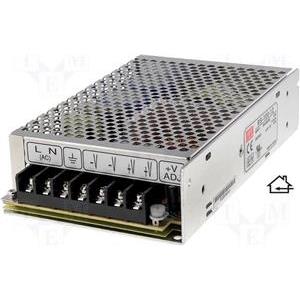

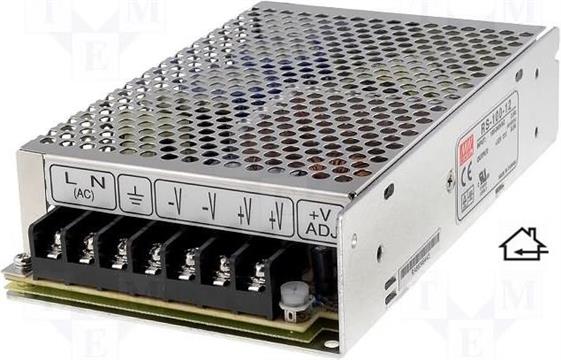

Meanwell switching ispravljač serije RS-xx sa jednim fixnim izlazom. Perforirano kućište, za ugradnju u uređaj.

tehnički podaci:

-Technical Specifications

Input Voltage: 88...132/176...264V AC (47...63Hz)
248...373V DC
Input Inrush Current, Max.: 40A
Leakage Current, Max.: 2mA
Output Voltage Adjustment: +10/-5%
Over Load Protection: 110...150%
Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC
Operating Temperature: -25...+70°C
Weight: 700g
I/P = Input, O/P = Output, FG = Frame Ground


Part Nr. UA IA PA DUA URN h
[V] [A] [W] [%] [mVp-p] [%]
RS-150-3.3 3,3 0...30 99 3 80 74
RS-150-5 5 0...26 130 2 80 78
RS-150-12 12 0...12,5 150 1 120 83
RS-150-15 15 0...10 150 1 120 84
RS-150-24 24 0...6,5 156 1 120 86
RS-150-48 48 0...3,3 158,4 1 200 87
UA = Output Voltage, IA = Output Current Range, PA = Output Power,
DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency
