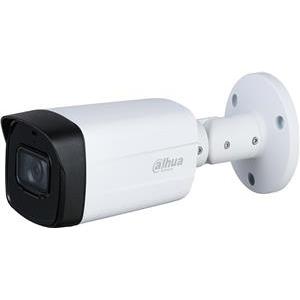

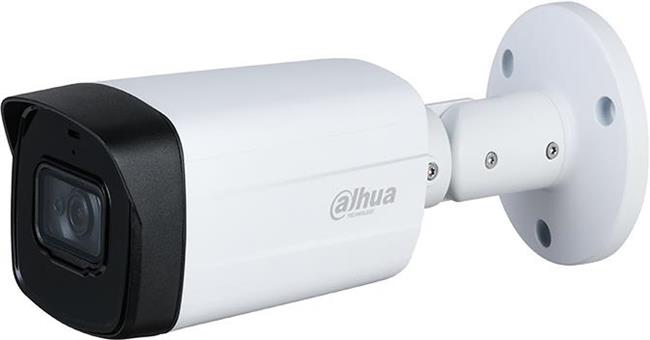

Kamera DAHUA Bullet HFW1500TH Rezolucija 5MP. Fiksna leća 3,6mm..IR do 80 metara .Smart IR. Anti-Vandal kučište. IP zaštita: IP 67 HAC-HFW1500TH-I85MP Starlight HDCVI IR Bullet Camera* The parameters and datasheets below can only be applied to 1500-S2 series> Max 25fps@5MP (16:9 video output)> CVI/CVBS/AHD/TVI switchable> 3.6 mm fixed lens (6 mm, 8 mm optional)> Max. IR length 80 m, Smart IR> IP67, DC12VameraImage Sensor1/2.7 inch CMOSMax. Resolution2880 (H) × 1620 (V)Pixel5MPScanning SystemProgressiveElectronic Shutter SpeedPAL: 1/25s–1/100000sNTSC: 1/30s–1/100000sS/N Ratio>65 dBMin. Illumination0.01 Lux/F1.6, 30IRE, 0 Lux IR onIllumination Distance80 m (262.5 ft)Illumination On/Off ControlAuto; manualIlluminator Number2Pan/Tilt/Rotation RangePan: 0°–360°Tilt: 0°–180°Rotation: 0°–360°LensLens TypeFixed-focalMount TypeM12Focal Length3.6 mm; 6 mm; 8 mmMax. ApertureF1.6Field of View3.6 mm: 109° × 92° × 48°(diagonal × horizontal × vertical)6 mm: 65° × 57° × 30°(diagonal × horizontal × vertical)8 mm: 48° × 43° × 24°(diagonal × horizontal × vertical)Iris TypeFixed irisClose Focus Distance3.6 mm: 1.6 m (5.2 ft)6 mm: 3.1 m (10.2 ft)8 mm: 4.9 m (16.1 ft)DORI DistanceLensDetectObserveRecognizeIdentify3.6 mm80 m(262.5 ft)32 m(105.0 ft)16 m(52.5 ft)8 m(26.2 ft)6 mm120 m(393.7 ft)48 m(157.5 ft)24 m(78.7 ft)12 m(39.4 m)8 mm150.4m(493.4 ft)60.2 m(197.5 ft)30.1 m(98.8 ft)15 m(49.2 ft)VideoFrame RateCVI:PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fpsAHD:PAL: 4M@25 fps;NTSC: 4M@30 fpsTVI:PAL: 4M@25 fps;NTSC: 4M@30 fpsCVBS:PAL: 960H;NTSC: 960HResolution5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)Day/NightAuto switch by ICRBLCBLC/HLC/DWDRWDRDWDRWhite BalanceAuto; manualGain ControlAuto; manualNoise Reduction2D NRSmart IRYesMirrorOff/OnPrivacy MaskingOff/On (8 area, rectangle)CertificationsCertificationsCE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)PortVideo OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC portPowerPower Supply12V ±30% DCPower ConsumptionMax 5.2W (12V DC, IR on)EnvironmentOperating Temperature-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)Storage Temperature-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)Protection GradeIP67StructureCasingMental front cover+plastic main body+mental bracketCamera Dimensions240.7 mm × 90.7 mm × 90.4 mm ( 9.48" × 3.57" × 3.56" )Net Weight0.41 kg (0.90 lb)Gross Weight0.64 kg (1.41 lb)
