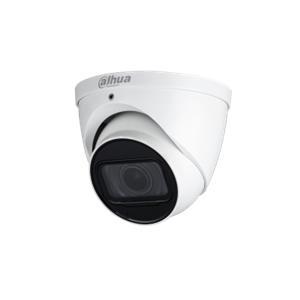

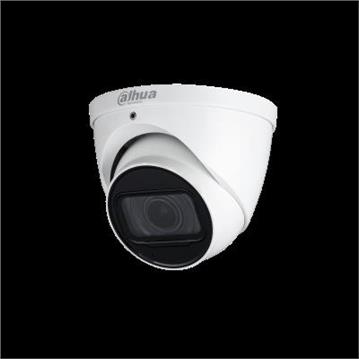

Kamera Dome Dahua HDW1500T-Z(-A) 5 MP Varifokalna MotoZoom leća. Rezolocija 5 MP. Anti vandal. SMART IR do 60 metara. Ugrađen mikrofon. HAC-HDW1500T-Z(-A)5MP Starlight HDCVI IR Eyeball Camera* The parameters and datasheets below can only be applied to 1500-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.> Max 25 fps@5MP (16:9 video output)> CVI/CVBS/AHD/TVI switchable> 2.7-12 mm motorized lens> Built-in mic(-A)> Max. IR length 60 m, Smart IR> IP67, DC12VCameraImage Sensor1/2.7 inch CMOSMax. Resolution2880 (H) × 1620 (V)Pixel5MPScanning SystemProgressiveElectronic Shutter SpeedPAL: 1/25 s–1/100000 sNTSC: 1/30 s–1/100000 sS/N Ratio> 65 dBMin. Illumination0.005 Lux/F1.6, 30IRE, 0 Lux IR onIllumination Distance60 m (196.9 ft)Illuminator On/Off ControlAuto; manualIlluminator Number2Pan/Tilt/Rotation RangePan: 0°–360°Tilt: 0°–78°Rotation: 0°–360°LensLens TypeMotorized vari-focalAuto FocusN/AMount Type?14Focal Length2.7 mm–12 mmMax. ApertureF1.6Field of ViewDiagonal: 39°–130°Horizontal: 34°–107°Vertical: 19°–55°Iris TypeFixed irisClose Focus Distance0.5 m (1.64 ft)DORI DistanceDetectObserveRecognizeIdentify2.7 mm69 m (226.37 ft)27.6 m (90.55 ft)13.8 m (45.27 ft)6.9 m (22.63 ft)12 mm191.6 m (628.6 ft)76.64 m (251.44 ft)38.32 m (125.72 ft)19.16 m (62.86 ft)VideoFrame RateCVI:PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fpsNTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fpsAHD:PAL: 4M@25 fps;NTSC: 4M@30 fpsTVI:PAL: 4M@25 fps;NTSC: 4M@30 fpsCVBS:PAL: 960H;NTSC: 960HResolution5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)Day/NightAuto switch by ICRBLCBLC/HLC/DWDRWDRDWDRWhite BalanceAuto; manualGain ControlAuto; manualNoise Reduction2D NRSmart IRYesMirrorOff/OnPrivacy MaskingOff/On (8 area, rectangle)CertificationsCertificationsCE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)PortAudio OutputOne channel built-in mic (-A)Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC portPowerPower SupplyDC 12V ±30%Power ConsumptionMax 6.6W (12V DC, IR on)EnvironmentOperating Temperature–30°C to +60°C (–22°F to +140°F); <95% (non-condensation)Storage Temperature–30°C to +60°C (–22°F to +140°F); <95% (non-condensation)Protection GradeIP67StructureCasingMetal throughout the whole casingCamera Dimensions?122 mm × 104.8 mm (?4.80" × 4.13")Net Weight0.57 kg (1.26 lb)Gross Weight0.72 kg (1.59 lb)
