Kit Ethernet Shield za Arduino®

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Kit Ethernet Shield za Arduino®

  large-image

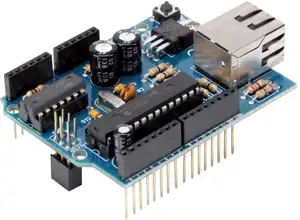

Kit Ethernet Shield za Arduino®
Kliknite na sliku za povećanje
thumb thumb thumb
Proizvođač: Velleman
Šifra: 1314114
Kataloški broj: KA04
Jamstvo: Nema
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


Configure your Arduino as a simple web server or let it get data from the worldwide web.

Features

based on a Microchip ENC28J60 chip
downloadable sample sketches and library
stackable design: the shield can be stacked with other shields
large user community
requires 1 Arduino UNO™ (not included)

Specifications

data rates up to 10 Mbps
integrated MAC controller
8 kB Transmit / Receive Packet Dual Port Buffer
the MAC controller supports both Unicast, Multicast and Broadcast packets,
has a programmable (up to 64-byte) pattern matching feature within a packet
at user defined offset and programmable wake-up on multiple packet formats
(Magic Packet, Unicast, Multicast, Broadcast, specific packet match or any packet)
uses pin 10 and 2 on an Arduino UNO™ board.
It also uses the ICSP connector as a serial connection to the shield to free up I/O pins

dimensions: 68 x 53mm
