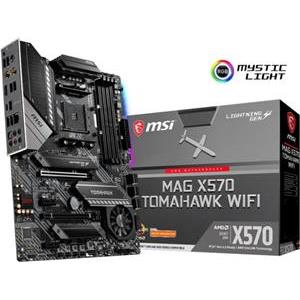

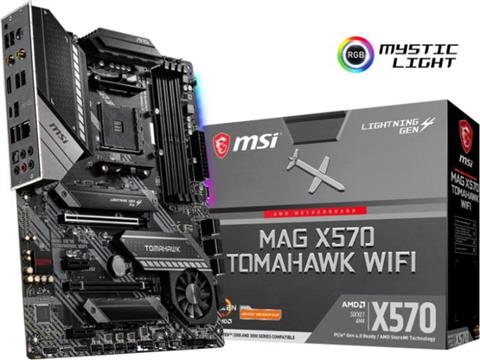

Matična ploča AM4 MSI X570 TOMAHAWK WIFI ATX (M.2 Port, PCIe 3.0 x 4, NVMe PCI:2 PCIe:2 RAM:4)
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča AM4 MSI X570 TOMAHAWK WIFI ATX (M.2 Port, PCIe 3.0 x 4, NVMe PCI:2 PCIe:2 RAM:4)
| Proizvođač: | MSI |
| Šifra: | 1345942 |
| Kataloški broj: | 7C84-001R |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
shape factor ATX
chipset AMD X570
CPU-Compatibility Ryzen 4000G, Ryzen 3000, Ryzen 3000G, Ryzen 2000, Ryzen 2000G, Athlon 3000G, without TDP limitation (Manufacturer-list)
VRM 8 real phases (6+2), PWM-Controller: ISL69247 (max. 8 phases)
MOSFETs CPU 12x 60A ISL99360
MOSFETs SoC 2x 60A ISL99360
RAM 4x DDR4 DIMM, dual PC4-36800U/?DDR4-4600 (OC), max. 128GB (UDIMM)
Extension slots 2x PCIe 4.0 x16 (1x x16, 1x x4), 2x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242)
external connectors 1x HDMI 1.4 (iGPU), 1x USB-C 3.1 (CPU), 1x USB-A 3.1 (CPU), 2x USB-A 3.1 (X570), 2x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x jack, 1x toslink, 1x PS/?2 Combo
Internal connectors 1x USB-C 3.1 Key-A Header (X570), 2x USB 3.0 Header (4x USB 3.0), 2x USB 2.0 header (4x USB 2.0), 6x SATA 6Gb/s (X570), 1x serial, 1x TPM-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 4x fan 4-Pin, 1x pump 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC1200)
onboard-Graphics iGPU
Wireless WLAN 802.11a/?b/?g/?n/?ac/?ax (2x2, Intel AX200), Bluetooth 5.0
RAID level 0/?1/?10 (X570)
Multi-GPU AMD 2-Way-CrossFireX (x16/?x4)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Lighting RGB, 1 zone (page right)
BIOS 1x 32MB (256Mb)
Special features AMD audio+solid capacitors, Diagnostic LED (LED indicators), 2x M.2-passive cooler, I/?O-shield integrated
Warranty three years (from date of manufacture, handling by merchant)
USB nomenclature Link
| Osnovne karakteristike | |
|---|---|
| Socket: | AM4 |
| Format ploče: | ATX |
| CPU podrška: | AMD Ryzen |
| Memorija: | DDR4 |
| Chipset: | AMD X570 |
*Unatoč uloženom trudu da damo što bolji i točniji opis, slike i specifikacije, ne možemo garantirati da su svi navedeni podaci točni te ne odgovaramo za eventualne pogreške nastale u opisu proizvoda, slika ili specifikacija. Iste je potrebno provjeriti na stranicama proizvođača ili pošaljite upit našim djelatnicima da provjere.
Ukoliko na našoj stranici otkrijete neistinite odnosno neadekvatne informacije, molimo vas da nam to javite na prodaja[o]protis.hr
Za odabrani proizvod nije unesen niti jedan komentar.
