Chipset Intel B460
Socket 1200
Format ATX
Vrsta memorije DDR4
DIMM 4
USB 2.0: n/a
USB 3.0: n/a
USB 3.2: 6
USB-C: 1
D-SUB n/a
DVI n/a
DisplayPort 1
HDMI 1
M.2 Da
U.2 n/a
LAN: 10/100/1000
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
Bluetooth n/a
Wi-Fi n/a

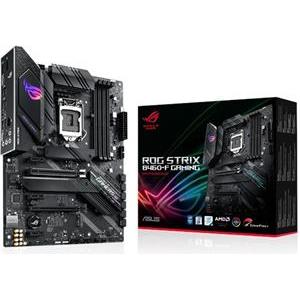

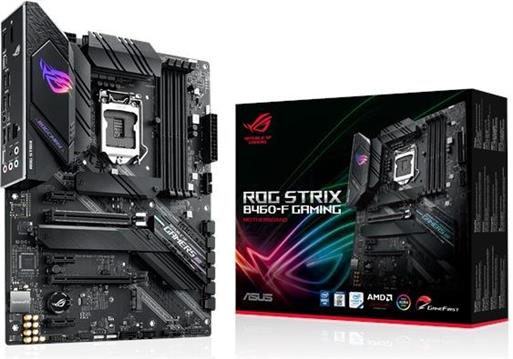

ROG Strix B460-F Gaming motherboard features solid power delivery and effective cooling designed to handle the latest 10th Generation Intel® Core™ processors. With its arresting futuristic aesthetic and intuitive ROG software, ROG Strix B460-F Gaming gives you a head start on your dream gaming build.

ALL-ROUND PERFORMANCE
The robust power design and comprehensive cooling features of Strix B460-F Gaming ensure great all-round performance, and an intuitive dashboard gives you full networking control so you can harness the full potential of your build.

AI NETWORKING
The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimization.

LEADING CONNECTIVITIY
ROG Strix B460-F Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly fast file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.

PLAY YOUR OWN STYLE
The cyberpunk-inspired aesthetics of ROG Strix B460-F Gaming are accentuated with bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

ROG GIVES YOU MORE
ROG exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

RAMCACHE III
RAMCache lll software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds. The intuitive interface displays real-time drive information, such as current read/write speeds and health status, and a Smart mode automatically caches all storage devices to maximize system resources.

CPU
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B460
Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
Graphic
Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16
Intel® B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN
Intel® I219-V 1Gb Ethernet
ASUS LANGuard
Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
- Rear audio USB Type-C® port
- Premium Japanese audio capacitors
- Audio Cover
USB Ports
Rear USB Port ( Total 8 )
1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®)
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
