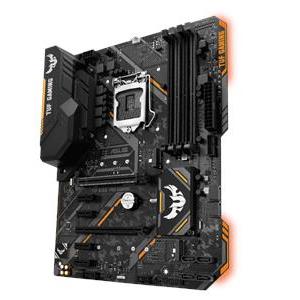

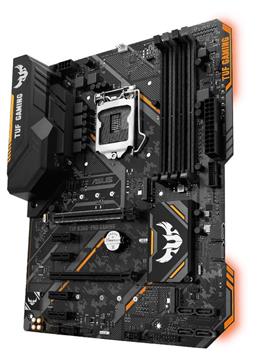

TUF B360-PRO GAMING
Note: The specifications are subject to change without notice.
CPU LGA1151 socket for 8th Gen Intel® Core™ Processor
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.
Chipset Intel® B360 Chipset
Memory 4 x DIMM, max. 64GB, DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
**Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Expansion Slots 1 x PCIe 3.0/2.0 x16 slot
1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)
4 x PCIe 3.0/2.0 x1 slots
Multi-GPU Support Supports AMD® 2-Way/Quad-GPU CrossFireX™ Technology
VGA Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/D-sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports D-sub with max. resolution 1920*1200@60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Maximum shared memory of 1024 MB (for iGPU exclusively)
Storage Intel® B360 Chipset
- 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIE x2 mode)*
- 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (PCIE x4 mode)
- 6 x SATA 6.0 Gb/s ports
- Ready for Intel® Optane Memory
*The M.2_1 socket shares SATA_2 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
LAN Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
TUF LANGuard
ASUS Turbo LAN Utility
Audio Realtek® ALC887 8-channel* high definition audio CODEC
- Exclusive DTS Custom for GAMING Headsets
- Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
- Supports jack-detection and front panel jack-retasking
USB Intel® B360 Chipset
- 2 x USB 3.1 Gen 2 ports up to 10Gbps at back panel (Type-A)
- 3 x USB 3.1 Gen 1 ports up to 5Gbps (2 ports @mid-board; 1 ports @back pane)
- 6 x USB 2.0 ports (2 ports @mid-board; 4 ports @back panel)
Exclusive TUF Gaming Features TUF Armor
TUF Components (TUF Cap, TUF Chokes, MOSFET & LANGuard ; certified by military-standard)
ASUS TUF PROTECTION
- ASUS SafeSlot Core: Fortified PCIe with solid soldering
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 4+2 Phase digital power design
ASUS SafeSlot
Exclusive DTS Custom for GAMING Headsets
Turbo LAN
ASUS Special Features Superb Performance
M.2 onboard
- The latest transfer technologies with up to 32Gb/s data transfer speeds
ASUS Fan Xpert 4 Core
- Advanced fan and liquid controls for ultimate cooling and quietness
ASUS EPU
- EPU
ASUS Exclusive Features
- AURA Sync
- ASUS Ai Charger
- ASUS AI Suite 3
EZ DIY
EZ Update
UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
File Transfer
- Cloud GO!
- File Transfer
Q-Design
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
ASUS Quiet Thermal Solution - ASUS ASUS Fan Xpert 4 Core
- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink
Back Panel I/O Ports 1 x D-sub port
1 x HDMI port
1 x PS/2 combo port
1 x LAN (RJ45) port
2 x USB 3.1 Gen 2 ports (Type-A)
1 x USB 3.1 Gen 1 Type-C port
4 x USB 2.0 ports
8-channel Audio I/O ports
Internal I/O Connectors 1 x USB 3.1 Gen 1 connectors support additional 2 USB ports (19-pin)
1 x USB 2.0 connectors support additional 2 USB ports
1 x M.2_1 Socket 3 (for M Key, type 2242/2260/2280 devices)
1 x M.2_2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices)
6 x SATA 6.0Gb/s connectors
1 x CPU Fan connector (support DC/PWM mode)
1 x AIO_Pump header (4-pin)
2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel
1 x COM port
1 x RGB header
1 x Clear CMOS jumper
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Accessories 2 x SATA 6Gb/s cables
1 x IO Shield
2 x M.2 Screw Package
1 x CPU Installation Tool
1 x Support DVD
1 x User's manual
1 x TUF Certification card(s)
1 x TUF GAMING sticker
Support DVD Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System Support Windows® 10 (64-bit)
Form Factor ATX form factor: 12.0 in. x 9.29 in. (30.5 cm x 24.4cm)
