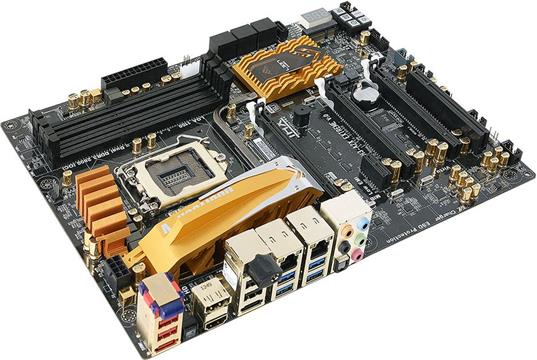

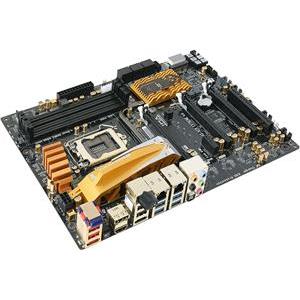

Matična ploča ECS Z87H3-A2X GOLDEN, Intel Z87, DDR3, zvuk, S-ATA, RAID, G-LAN, PCI-E 3.0, USB 3.0, WiFi, Bluetooth, HDMI, DP, ATX, s.1150
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča ECS Z87H3-A2X GOLDEN, Intel Z87, DDR3, zvuk, S-ATA, RAID, G-LAN, PCI-E 3.0, USB 3.0, WiFi, Bluetooth, HDMI, DP, ATX, s.1150
| Proizvođač: | ECS |
| Šifra: | 1271949 |
| Kataloški broj: | Z87H3-A2X GOLDEN |
| Jamstvo: | 36 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
CPU
o Supports new 4th gen Intel Core family, Pentium, Celeron series processors in LGA1150 socket
o DMI 5.0GT/s
o 12 Phase Thermal Design Power
o VRD 12.5
o 100% Solid capacitor design
o Supports Intel Turbo Boost 2.0 Technology
o Supports Intel Hyper-Threading Technology
o Intel K Series Unlock CPU Support
o Please refer to CPU support list for details
CHIPSET
o Intel Z87 Express Chipset
o Intel Smart Response Technology, Intel Smart Connect Technology & Intel Rapid Start Technolog
GRAPHICS
o Supports DirectX 11 .1
o *DirectX 11.1 - Only supported with the 4th Gen Intel processors for LGA 1150 socket
o Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
o Supports HDMI 1.4a & Premium Audio
o Supports LucidLogiX Virtu MVP
o Supports NVIDIA 2-Way SLI
o Supports ATI 3-Way CrossFireX
o Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY
o Dual-channel DDR3 Memory architecture
o Supports DDR3 1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
o Supports up to 3000(OC),2933(OC),2800(OC)
o 4 X 240-pin DDR3 DIMM socket
o Support up to 32 GB*
o Intel extreme Memory Profile (XMP) 1.3/1.2 Memory Modules
o Note:Please refer to the latest Memory support list for details
o Note: DDR3_1 with DDR3_3 are the same channel, DDR3_2 with DDR3_4 are the same channel by Intel Specification
EXPANSION SLOT
o 3 X PCI Express X16 Gen 3.0 slot(s)
o 1 X PCI Express X 1 Gen 2.0 slot(s)
o Supports NVIDIA SLI Technology
o Supports ATI CrossfireX Technology
o 1 X Mini PCI Express X1 slot(s)( Mini SATA supported)
o 1 X PCI slot(s)
o *When using two VGA cards, the bandwidth is @8 badnwidth; when using one VGA card, the bandwodth is @16.
Storageo Support by Intel Z87 Express Chipset
5 X Serial ATAIII 6Gb/s
Located in SATA3_1/2, SATA3_3/4, SATA3_7 Port
o Support by ASM1061 Controler
2 X Serial ATAIII 6Gb/s
Located in EXSATA3_5/6 Port
2 X eSATAIII 6Gb/s
RAID0, RAID1,RAID5, RAID 10 configuration
o Supports Intel Rapid Storage Technology
o Supports NCQ, AHCI and ''Hot Plug'' functions
Audioo 8-Channel HD audio CODEC
o Compliant with HD audio specification
o Realtek ALC1150+ALC5505 8-channel High Definition audio CODEC
o BluRay DVD/HD DVD support
LAN
o Dual Realtek 8111G Gigabit Fast Ethernet Controller
o Wake-On-LAN
o Dual LAN with Teaming function
o Ultra low power consumption
Wireless
o Wi-Fi 802.11a/b/g/n wireless LAN
Bluetooth
o Supports Bluetooth V2.0
USB
o Support by Z87 Express Chipset
6 X USB3.0 port(s) up to 5Gb/s
Back Panel 4 port(s)
Onboard 2 port(s)
8 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 4 port(s)
o ECS EZ Charger (Gray USB header)
REAR PANEL I/O
o 1 X Audio port (Line-in,4x Line-out, SPDIF out)
o 2 X RJ-45 port with teaming function
o 1 X HDMI port(s)
o 1 X Display port
o 1 X Wireless LAN Dongle
o 1 X Bluetooth Dongle
o 2 X eSATA 6Gb/s port(s)
o 4 X USB3.0 port(s)
o 4 X USB2.0 port(s)
o 1 X Clear_CMOS Button
CONNECTORS & HEADERS
o 1 X 24-pin ATX Power Supply connector
o 1 X 8-pin ATX 12V Power Connector
o 1 X 4-pin CPU_FAN connector
o 1 X 4-pin SYS_FAN connector
o 1 X 3-pin PWR_FAN connector
o 1 X Power on button
o 1 X Reset button
o 1 X Clear_CMOS button
o 1 X Front Panel switch/LED header
o 1 X Front panel audio header
o 1 X Onboard Buzzer
o 1 X USB 3.0 header
o 2 X USB 2.0 header
o Support EZ charger (gray color)
o 1 X CLR_CMOS header
o 1 X Serial port header (COM)
o 1 X mSATA connector
o 1 X 7S-LED Display
o 1 X ME_UNLOCK header
o 1 X Chassis intrusion header
o 1 X Voltage measure points
o 1 X 80P Switch button
o 1 X Quick OC button
o 1 X BIOS set button
o 1 X ROM Backup button
SYSTEM BIOS
o AMI BIOS with 64x2 MB SPI Flash ROM
o Supports M.I.B X Utility
o Supports ACPI 3.0 & DMI
o F7 hot key for boot up devices option
o Over-Clocking
o Graphic OC Support
o Dual Display
o Support ECS EZ BIOS
o Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
o Multi-Language BIOS
o Audio, LAN, can be disabled in BIOS
o Dual BIOS
o Dual-Monitor function
FORM FACTOR
o ATX Form Factor
o 305mm(W) X 244mm(H)
OS Support
o Windows 7 32-bit
o Windows 7 64-bit
o Windows 8 32-bit
o Windows 8 64-bit
| Osnovne karakteristike | |
|---|---|
| Socket: | 1150 |
| Memorija: | DDR3 |
