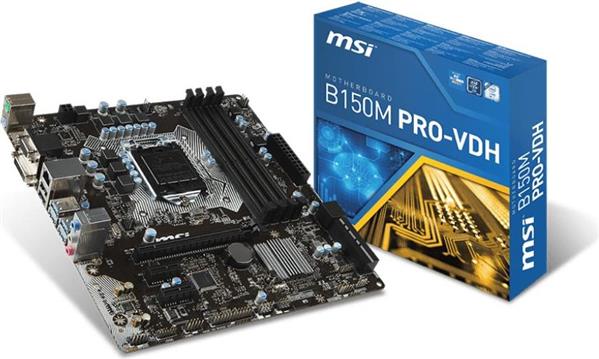

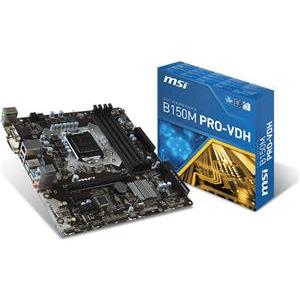

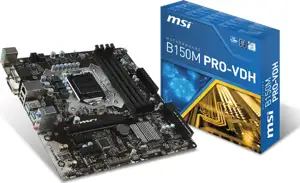

Matična ploča MSI B150M Pro-VDH, s1151, mATX
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Matična ploča MSI B150M Pro-VDH, s1151, mATX
Proizvođač: | MSI |
Šifra: | 1289590 |
Kataloški broj: | B150M PRO-VDH |
Jamstvo: | 36 |
Prosječna ocjena: 0,00 | Glasova: 0 |
Ocijeni
ovaj proizvod
|
- Supports 6th Gen Intel Core/Pentium/Celeron processors for LGA 1151 socket
- Supports DDR4-2133 Memory
- DDR4 Boost: Give your DDR4 memory a performance boost
- SATA Express 16Gb/s + SATA 6Gb/s
- VGA Armor: Reinforced Armor slot
- Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
- Audio Boost: Reward your ears with studio grade sound quality
- Military Class 4: Top Quality & Stability
- Guard-Pro: Improved Protection and Power Efficiency
- EZ Debug LED: Easiest way to troubleshoot
- Overvoltage Protection:Prevent Unforeseen Damage
- 4K UHD Support: Ultra-high Definition Visual Experience
- COM/LPT support (pin header): Perfect for Industrial and Commercial use
- Intel SBA Support: Improves Productivity, Management and Security
- WHQL CERTIFIED.WINDOWS 10 READY
Specifications
CPU
- Supports 6th Gen Intel Core i3/i5/i7 processors, Intel Pentium and Celeron processors for Socket LGA1151
CHIPSET
- Intel B150 Chipset
MEMORY
- 4× DDR4 memory slots, support up to 64GB
- Supports DDR4 2133 MHz
* Dual channel memory architecture
* Supports ECC, un-buffered memory
* Supports Intel Extreme Memory Profile (XMP)
** Hyper DIMM support is subject to the physical characteristics of individual CPUs
** DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4 2133 MHz on XMP mode due to Intel chipset limitation
SLOTS
1× PCIe 3.0 x16 slot
2× PCIe 3.0 x1 slots
ON-BOARD GRAPHICS
1× HDMI ports, support a maximum resolution of 4096×2160@24Hz, 2560×1600@60Hz
1× DVI-D port, support a maximum resolution of 1920×1200@60Hz
1× VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
ON-BOARD SATA
- Intel B150 Express Chipset
6× SATA 6Gb/s ports
1× SATAe port (PCIe 3.0 x2)
* SATAe port is backward compatible with SATA
USB
- Intel B150 Chipset
6× USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6× USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
- Realtek ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
1× Realtek RTL8111H Gigabit LAN controller
BACK PANEL I/O PORTS
1× PS/2 keyboard port
1× PS/2 mouse port
1× HDMI port
1× DVI-D port
1× VGA port
2× USB 2.0 ports
4× USB 3.1 Gen1 ports
1× LAN (RJ45) port
3× audio jacks
INTERNAL I/O CONNECTORS
1× 24-pin ATX main power connector
1× 4-pin ATX 12V power connector
6× SATA 6Gb/s connectors
2× USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1× USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1× 4-pin CPU fan connector
2× 4-pin system fan connectors
1× Clear CMOS jumper
1× Front panel audio connector
2× Front panel connectors
1× TPM module connector
1× Chassis Intrusion connector
1× Serial port connector
1× Parallel port connector
DIMENSIONS
- m-ATX Form Factor (23.5×22.8 cm)
Osnovne karakteristike | |
---|---|
Socket: | 1151 |
Format ploče: | mATX |
CPU podrška: |
Intel 6. gen Intel 7. gen |
Memorija: | DDR4 |
Chipset: | Intel B150 |
