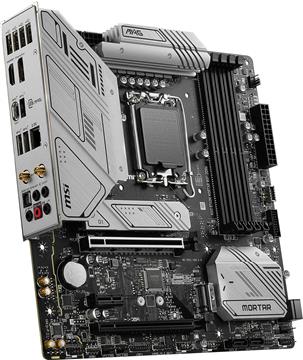

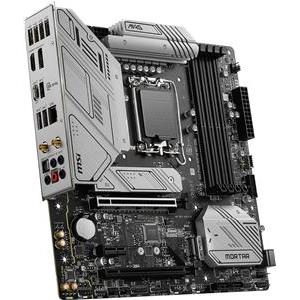

MAG B760M MORTAR WIFI DDR4 S1700

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upperMOS and helps dissipate the heat.

7W/mK Thermal Pad &

Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,

HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
Summary Technical Characteristics
MSI MAG B760M MORTAR WIFI DDR4
Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM
Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10
Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Technical Specifications
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors 1
Supported processor sockets LGA 1700
Memory
Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
Non-ECC
Supported memory clock speeds 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
Supported memory clock speed (max) 5333 MHz
Storage controllers
Supported storage drive interfaces M.2, SATA III
RAID support
RAID levels 0, 1, 5, 10
Internal I/O
USB 2.0 connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Front panel audio connector
Front panel connector
ATX Power connector (24-pin)
CPU fan connector
TPM connector
RGB LED pin header
Rear panel I/O ports
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Ethernet LAN (RJ-45) ports 1
HDMI 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
HDMI version 2.1
DisplayPort 1
DisplayPort version 1.4
Network
Wi-Fi
Ethernet LAN
Ethernet interface type 2.5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth version 5.3
Features
Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B760
Audio output channels 7.1 channels
Audio chip Realtek ALC897
Power source type ATX
Windows operating systems supported Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots 2
BIOS
BIOS type UEFI AMI
BIOS memory size 256 Mbit
System Management BIOS (SMBIOS) version 3.5
Weight & dimensions
Width 243.8 mm
Depth 243.8 mm
