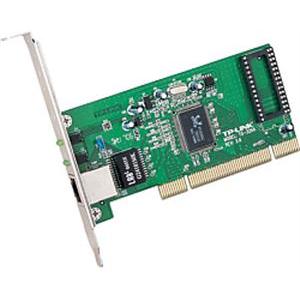

Mrežna kartica PCI TP-Link TG-3269 Gigabit Networks Adapter, 10/100/1000Mbps
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Mrežna kartica PCI TP-Link TG-3269 Gigabit Networks Adapter, 10/100/1000Mbps
| Proizvođač: | TP-Link |
| Šifra: | 0130619 |
| Kataloški broj: | TG-3269 |
| Jamstvo: | 12 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
Features
- Supports 32-bit 33/66MHz PCI Bus
- Supports 10/100/1000Mbps Nway Auto-Negotiation
- Supports 10/100Mbps full and half duplex, 1000Mbps full duplex
- Supports Full Duplex Flow Control (IEEE 802.3x)
- Supports IEEE 802.1P, IEEE 802.1Q VLAN tag
- Supports Jumbo Frame
- Supports Auto-MDI/MDIX
- Provides Bootrom slot, supporting remote boot
- Supports ACPI, PCI power management
- Contain two large independent receive and transmit FIFOs
- One STP/UTP connector
- Provides LEDs to indicate network Link/Activity/Speed/Duplex
- Windows98/98se/2000/ME/NT/XP/2003/VISTA/Novell Netware/LINUX
- Plug and Play
Specifications
- Standards and Protocols:
* IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
* CSMA/CD, TCP/IP, PCI Revision 2.1/2.2
- Interface: 32-bit PCI
- Transmission Rate:
* 10/100Mbps for Half-Duplex mode
* 20/200/2000Mbps for Full-Duplex mode
- Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
- Jumbo Frame: 7680Bytes
- Port: 10/100/1000Mbps RJ45
- Slot: 1 BOOTROM slot
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (max. 100m)
* EIA/TIA-568 100 Ohm STP (max. 100m)
* 100BASE-TX: UTP category 5, 5e cable (max. 100m)
* EIA/TIA-568 100 Ohm STP (max. 100m)
* 1000Base-T: UTP category 5, 5e cable (max. 100m)
- LED Indicator: 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
- Safety & Emission: FCC, CE
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Operating System: Windows98/98se/2000/ME/NT/XP/2003/VISTA/Novell Netware/LINUX
| Osnovne karakteristike | |
|---|---|
| Sučelje: | PCI |
