Napajanje 550W XFX TS Series, P1-550G-TS3X

Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Napajanje 550W XFX TS Series, P1-550G-TS3X

  large-image

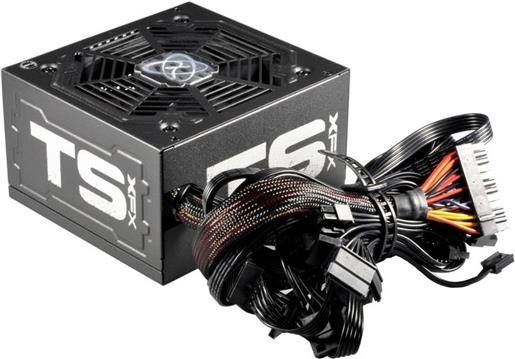

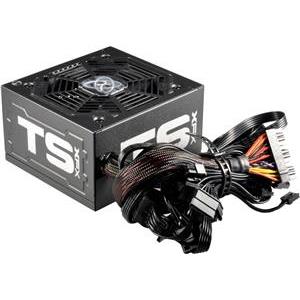

Napajanje 550W XFX TS Series, P1-550G-TS3X
Kliknite na sliku za povećanje
thumb thumb
Proizvođač: XFX
Šifra: 1271137
Kataloški broj: P1-550G-TS3X
Jamstvo: 24
Prosječna ocjena: Ocjena 0 0,00 | Glasova: 0
  Ocijeni ovaj proizvod


General


+12V Rail Outputs : Single


100% Tested and Verified : Y


ATX12V 2.2 & ESP12V 2.91 Compliant : Y


ATX12V 2.31 Compliant : Y


Compatible with intel ad AMD platforms : Y


UPC Number : 778 656 063 051


Technologies


CrossFire Ready : Y


Hasewell Ready : Y


SLI Ready : Y


Ratings & Efficiencies


AC Input Current (Arms) : 4A-8A


AC Input Frequency (Hz) : 50/60 Hz


AC Input Voltage (Vac) : 100-240 VAC


Efficiency @ Typical Load : Up to 90%


Energy-Efficiency : 80 Plus Gold Certified


Maximum Wattage : 550 Watts


Other Features


High Reliable 105C Japanese Capacitors : Y


Solid State Capacitors : Y


Tight voltage regulation (5%) : Y


Load Range


Max -12V Output Current (A) : 0.3


Max +12V Output Current (A) : 45


Max +3.3V Output Current (A) : 20


Max +5V Output Current (A) : 20


Max +5VSB Output Current (A) : 2.5


Cable Connectors


Fixed FDD : One Connectors


Fixed Peripheral : Up to 4 Connectors


Fixed 6+2-pin PCI-E : 2


Fixed ATX12V / EPS12V : One 4+4-pin, One EPS 12V 8-pin


Fixed Motherboard Connector : 20+4-Pin


Fixed SATA : Up to 8 Connectors


Safety & Protection


Active Power Factor Correction (PFC) : Y


Over Current Protection (OCP) : Y


Over Power Protection (OPP) : Y


Over Temperature Protection : Y


Over Voltage Protection

Kliknite za više informacija o proizvodu
Osnovne karakteristike
Snaga [W]: 550
Modularno: Ne
Učinkovitost: Info Gold (89%)
