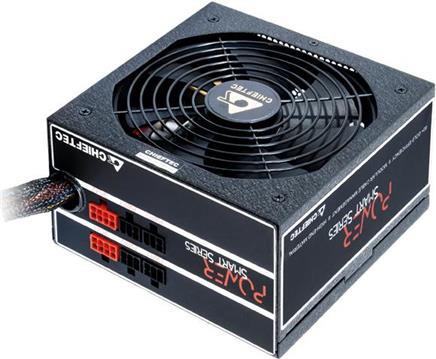

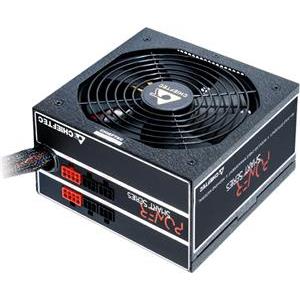

Napajanje 750W CHIEFTEC Power Smart Series, GPS-750C, ATX v2.3, 140mm vent, 80+ Gold
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Napajanje 750W CHIEFTEC Power Smart Series, GPS-750C, ATX v2.3, 140mm vent, 80+ Gold
| Proizvođač: | Chieftec |
| Šifra: | 1309304 |
| Kataloški broj: | GPS-750C |
| Jamstvo: | 24 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
POWER SMART series: With the eight brand new ATX 2.3, full range (110V ~ 240V) and 80plus GOLD certified just launched power supplies of the renowned and severally awarded POWER SMART series with ratings from 450W up to 1450W, CHIEFTEC makes the “GOLD” affordable and accessible to all segments of market. Supporting Intel’s Haswell technology, the smart cable management with modern +12V single rail technology and luxuriously long cables as well as a vast amount of connectors, supports all components with intensive power consumption, such as multiple GPUs thereby optimizing to the maximum, the power consumption and keeping electricity bills low.
Performance
AC Input: 100-240V / 10A
Frequency: 47 - 63Hz
+5V: 22A
+3,3V: 22A
+5V & +3,3V combined: 120W
+12V 1: 62A / 744W
+12V 2: -
+12V 1 & +12V 2 combined: N/A
+12V 3: N/A
+12V 4: N/A
+12V 3 & +12V 4 combined: N/A
P.F.: 0,9
-12V: 0,3A
+5VSB: 2,5A
Maximum Load: 750W
Native cable:
20+4PIN ATX: 1
SATA: -
MOLEX: -
Floppy: -
4PIN 12V: 1
8PIN 12V: -
8PIN (4+4) 12V: 1
6PIN PCIe: -
8PIN (6+2) PCIe: -
Modular cable:
20+4PIN ATX: -
SATA: 6
MOLEX: 3
Floppy: -
4PIN 12V: -
8PIN 12V: -
8PIN (4+4) 12V: -
6PIN PCIe: -
8PIN (6+2) PCIe: 4
Features
Spezification: ATX 12V 2.3
Form factor: PS II
Efficiency: 90%
Dimension (DxWxH): 160 mm x 150 mm x 87 mm
PFC: Active PFC (0,9)
Fan: 140mm silent fan
Security:
UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
AFC (Automatic Fanspeed Control)
| Osnovne karakteristike | |
|---|---|
| Snaga [W]: | 750 |
| Modularno: | Ne |
Učinkovitost:
|
Gold (89%) |
