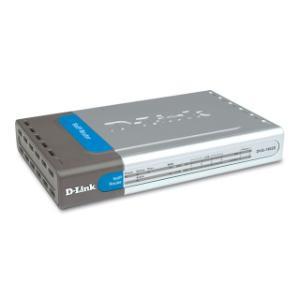

Router D-Link DVG-1402S
Proizvod nije dobavljiv. Potražite neke druge modele koji su zamijenili Router D-Link DVG-1402S
| Proizvođač: | D-Link |
| Šifra: | 0180154 |
| Kataloški broj: | DVG-1402S |
| Jamstvo: | 12 |
Prosječna ocjena:
0,00
| Glasova:
0
|
| Ocijeni
ovaj proizvod
|
Technical Specifications
DEVICE PORTS
- 2 FXS RJ-11 ports
- 10/100BASE-TX RJ-45 port for DSL/cable modem connection
- 4 10/100BASE-TX RJ-45 ports for LAN connection
- RJ-14 port console port
WAN FUNCTION SUPPORT
- PPP over Ethernet Client PPPoE (RFC 2516)
INTERNET SUPPORT
- IP, TCP, UDP, ARP protocols
- HTTP 1.1
- DHCP client
- DNS
VoIP PROTOCOL SUPPORT
- MGCP (MGCP available upon request)
- SIP
AUDIO CODE
- G.711u-law/A-law
- G.723.1
- G.726
- G.729A
ECHO CANCELLATION
- G.168
TELEPHONE FUNCTION SUPPORT
- DTMF dial tone signal support
- Dial pulse support
- Caller ID support
FAX FUNCTION SUPPORT
- Transparent fax (G.711)
OTHERS
- Call waiting alert tone support
- Play ring splash to phone when system ready with registered
QoS
- Priority Queues TOS Type of Service: 3 levels supported (Normal, Signaling, RTP packets)
Built-in Router
IP PACKET ROUTING
- DHCP/NAT
- IP filtering
- TCP/IP with RIP v.1, RIP v.2 (RFC 1389), Static Routing
- ICMP (RFC 791)
- UDP (RFC 792)
- ARP (RFC 826)
VPN SUPPORT
- IPSec and PPTP pass-through
IP MULTICAST
- IGMP Proxy
- Multicast forwarding
INTERNET GATEWAY
- Dynamic Host Configuration Protocol (DHCP) server/client (RFC 2131)
- Network Address Translation (NAT)
Configuration & Management
ADMINISTRATION SUPPORT
- Telnet
- Web-based
- Out-of-band through console port
USER AUTHENTICATION
- PPP Authentication Protocol (RFC 1334)
- Challenge Handshake Authentication Protocol with PPP (RFC 1994)
STATISTIC MONITORING
- DSP/Ethernet statistics
FIRMWARE UPGRADE, CONFIGURATION BACKUP/RESTORE
- TFTP support
IP NUMBER ASSigNMENT
- DHCP server
SELF IDENTIFICATION
- DHCP client
- Bootp
Physical & Environmental
LED INDICATORS
- Power
- Status
- ADSL Link/Act
- LAN 10 or 100Mbps Speed (per LAN port)
- Phone On/Off/Ringing (per FSX port)
POWER INPUT
- 12VDC 1.25A, through external power adapter
POWER CONSUMPTION
- 10 watts (max.)
- DIMENSIONS (L×W×H): 193×118×30 mm (device only)
OPERATING TEMPERATURE: 0C - 40C
STORAGE TEMPERATURE: -10C - 55C
HUMIDITY: 5% - 95% non-condensing
EMI
- FCC Class B
- CE
SAFETY: CB (IEC60950)
| Osnovne karakteristike | |
|---|---|
| LAN: | 4x 10/100Mbps |
| 3G/4G: | Ne |
| Tip: | ADSL/Cable Router |
| WAN: | 1x 10/100Mbps |
| Energija i potrošnja | |
| Napajanje: | vanjsko |
| Ostale karakteristike | |
| Ostalo: | 2x RJ-11 FXS POTS ports |
