- The WPM Gold ZERO is a reliable power supply with modern LLC resonant converter technology
- The power supply delivers optimal performance for gaming PCs and is certified as being energy efficient
- In addition to this, low-noise operation is enhanced by the ZERO RPM function which suspends fan rotation when no active cooling power is needed
- The semi-modular design also ensures a tidy installation and appearance

EXCELLENTLY ENERGY EFFICIENT
- The WPM Gold ZERO is certified 80 PLUS Gold, achieving at least 90 % efficiency at 50 % load as well as 87 % efficiency at 20 % and 100 % load

MODERN LLC TECHNOLOGY
- The WPM Gold ZERO is equipped with state-of-the-art LLC resonant converter technology
- This provides the power supply with a consistent and low-interference voltage
- Noise and heat levels are minimized as far as possible

ZERO RPM
- The ZERO RPM function disables the fan rotation of the power supply to provide a silent operation at low to medium loads
- When the system again requires an active cooling, the fan rotation is automatically re-activated

RYZEN READY AND SEMI-MODULAR
- To keep the inside of the PC case neat and tidy, the cables can be installed according to individual requirements
- Only the ATX cable and the 4+4-pin CPU cable, which are both always needed, are firmly attached to the power supply
- Even power-hungry systems like RYZEN can be powered without an adapter thanks to the second 4+4-pin CPU cable
- This uses one of the two PCIe / CPU sockets, which can also be used to power graphics cards

Specifications
GENERAL
- 80 PLUS Certification: Gold
- Form Factor: ATX 2.3
- Continuous Power: 550 W
- ErP Compliant: Yes
- Active PFC: Yes
- Technology: LLC + DC/DC
- MTBF: Min. 100.000 Hours
- Operating Temperature: 0°C to 40°C
- Standby Power Consumption: Max. 0.3 W
- Weight incl. Fixed Cables: 1.61 kg
- Dimensions (L×W×H): 150×160×86 mm
- Housing Color: Black

INPUT
- Voltage: 100 - 240 VAC
- Frequency: 47 - 63 Hz
- Input Current (110/230 V): 8A / 4A

OUTPUT
- 12 V Rail(s): 1
- Load 3.3 V: 20 A
- Load 5 V: 20 A
- Max. Combined Power 3.3 V + 5 V: 110 W
- Load 12 V1: 45 A
- Max. Combined Power 12 V: 540 W
- Load 5 VSB: 2.5 A
- Load -12 V: 0.3 A

CABLE AND CONNECTORS
- Cable Configuration: Semi-Modular
- Flat Cables: Yes
- Maximum Cable Length: 85 cm
- Cable Length Mainboard Connector: 55 cm
- Cable Length CPU Connector: 55 cm
- Cable Length PCIe Connector: 55 cm
- Cable Length to First Peripheral Connector: 55 cm
- 24-Pin Mainboard Connector: 1
- 4+4-Pin CPU Connector: 2
- 6+2-Pin PCIe Connector: 4
- SATA Connector: 9
- IDE Connector: 3
- Floppy Connector: 1

FAN
- Fan Size: 140 mm
- Bearing Type: Sleeve Bearing

PROTECTIONS
- OVP (Over Voltage Protection): Yes
- SCP (Short Circuit Protection): Yes
- OPP (Over Power Protection): Yes

SAFETY CERTIFICATIONS
- CE, FCC, CB

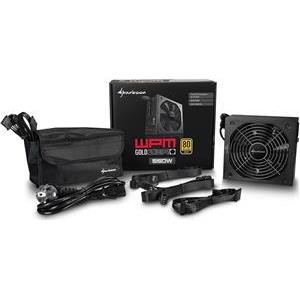

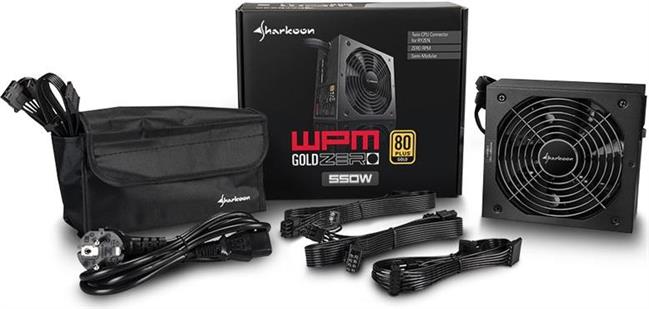

PACKAGE CONTENTS
- WPM Gold Zero 550
- Cable Bag
- Set of modular cables
- Power Cord
- Mounting Screws
- Manual
