- Working with Synology NAS, VS960HD is an ultra-compact companion system offering features of Surveillance Station including live view and management tools

PC-LESSs SURVEILLANCE MANAGEMENT SOLUTION
- VisualStation is the perfect alternative when facing limited space or budget constraints
- Just plug in an Ethernet cable, connect to an LCD-monitor or TV, log in to Synology Surveillance Station - and you have a monitoring station for yourself

ROBUST AND CERTIFIED HARDWARE FOR HARSH ENVIRONMENTS
- Free from mechanical moving parts, VisualStation is more resistant against vibration and hardware failure
- Its solid outer case and optimized design allow VisualStation to run within industrial temperature ranges, from -20°C to 50°C. In addition, VisualStation is EN45545 and EN50155 certified

IDEAL FOR TV WALL SETUP
- TV wall is ideal for monitoring a massive amount of cameras at a glance, and it is easy to set up with VisualStation

DUAL SCREEN DISPLAY
- By supporting dual monitor video outputs to allow users to switch between mirrored and extended desktop modes, VisualStation provides a cost-efficient, easy to setup, and scalable TV wall solution

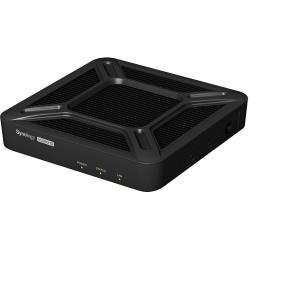

MINIMUM DEVICE SIZE
- The whole system fits in a palm-sized enclosure and can be easily attached to a wall or the back of a screen with a VESA compatible mount

CONVENIENT LIVE VIEW AND PLAYBACK INTEFACE
- VS960HD provides a user-friendly interface and powerful features from Surveillance Station
- Intuitive interface for easy operation: For both beginner and advanced users, you can enjoy versatile features by operating VisualStation directly via an intuitive interface using a USB mouse, keyboard, or even a joystick
- Support most Surveillance Station features: Both beginner and advanced userscan enjoy versatile features by operating VisualStation directly via an intuitive interface using a USB mouse, keyboard, or joystick

Hardware Specifications
VIDEO OUTPUTS
- Video Output: HDMI ×2
- Supported Video Resolution:
* HDMI 1: 4K (3840×2160, 30Hz/60Hz)
* HDMI 2: 1080p (1920×1080, 60Hz)

AUDIO
- Audio Input: 3.5 mm Stereo Audio Jack ×1
- Audio Output: 3.5 mm Stereo Audio Jack ×1

LAN
- RJ-45 1GbE LAN Port: 1

USB
- USB 2.0 Port: 2
- USB 3.0 Port: 1

APPEARANCE
- Size: 32×130×130 mm
- Weight: 0.38 kg

OTHERS
- Power Supply Unit / Adapter: 36W
- AC Input Power Voltage: 100V to 240V AC
- Dynamic DC Input: 7-24V
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption:
* 7.2W (96ch full-load)
* 4.9W (Power on Idle)

ENVIRONMENT
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Adapter Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 5% to 95% RH

CERTIFICATION
- FCC, CE, BSMI, EN50155, EN45545, EAC, RCM

Software Specifications
- Maximum IP cam: 96
- Total FPS (H.264):
* 960 FPS @ 720p (1280x720), 96 Channels
* 580 FPS @ 1080p (1920×1080), 58 Channels
* 440 FPS @ 3M (2048x1536), 44 Channels
* 250 FPS @ 5M (2591x1944), 25 Channels
* 140 FPS @ 4K (3840 x 2160), 14 Channels
- Total FPS (H.265):
* 900 FPS @ 720p (1280x720), 90 Channels
* 640 FPS @ 1080p (1920×1080), 64 Channels
* 430 FPS @ 3M (2048x1536), 43 Channels
* 250 FPS @ 5M (2591x1944), 25 Channels
* 150 FPS @ 4K (3840 x 2160), 15 Channels
- Total FPS (MJPEG):
* 400 FPS @ 720p (1280x720), 40 Channels
* 200 FPS @ 1080p (1920×1080), 20 Channels
* 140 FPS @ 3M (2048x1536), 14 Channels
* 80 FPS @ 5M (2591x1944), 8 Channel
- Video Codec: MJPEG, MPEG-4, H.264, H.265
- Audio Codec: PCM, G711, G726, AMR, AAC
- Live View / Recording Playback: Yes
- Snapshot Support: Yes
- eMap Support: Yes
- PTZ Control / Patrol: Yes
- Log Viewer: Yes

NOTES
* VisualStation throughput is tested with Axis P1347 (H.264@1280x720@10FPS)
* The channel numbers indicated in the Total FPS column of each resolution is the maximum number VS960HD supports for live view display
* The FPS of single channel for codec H.264 or H.265 can support up to 60 FPS

Environment & Packaging
- Environment: RoHS Compliant
- Packaging Content:
* Main Unit ×1
* Quick Installation Guide ×1
* AC Power Adapter ×1
* RJ-45 LAN Cable ×1
* VESA mounting kit
