- Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius
Authentication
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Dual Firmware Image improves reliability and up-time of your network

WHAT THIS PRODUCT DOES

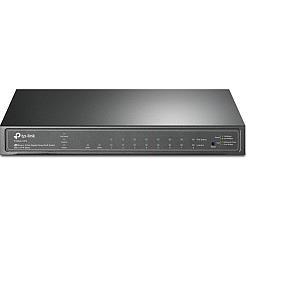

- TP-Link Gigabit Smart Switch T1500G-10PS is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the PoE standard with total PoE power budget of 53W and useful PoE power management features
- The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features
- TP-Links Gigabit Smart Switch T1500G-10PS is especially designed for the small and medium business networks that require efficient network management
- T1500G-10PS comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability
- Whats more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network

HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
- Interface:
* 8 10/100/1000Mbps RJ45 Ports
* 2 SFP slots
* (Auto-Negotiation/Auto MDI/MDIX)
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity: Fanless
- Power Supply:
* 100-240VAC, 50/60Hz
* External Power Adapter(Output: 48VDC/1.25A)
- Power Consumption:
* Maximum (PoE on): 64.9W
* Maximum (PoE off): 9.9W
- PoE Ports (RJ45):
* Standard: 802.3af compliant
* PoE Ports: 8 Ports
* Power Supply: 53W
- Dimensions (W×D×H): 209×126×26 mm

PERFORMANCE
- Bandwidth/Backplane: 20Gbps
- Packet Forwarding Rate: 14.9Mpps
- MAC Address Table: 8K
- Jumbo Frame: 9KB

SOFTWARE FEATURES
- Quality of Service:
* 802.1p CoS/DSCP priority
* 4 priority queues
* Queue scheduling: SP, WRR, SP+WRR
* Port/Flow- based Rate Limiting
* Voice VLAN
- L2 Features:
* IGMP Snooping V1/V2/V3
* 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
* Spanning Tree STP/RSTP/MSTP
* BPDU Filtering/Guard
* TC/Root Protect
* Loop back detection
* 802.3x Flow Control
* LLDP, LLDP-MED
- VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
- Access Control List: L2 - L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
- Security:
* Port Security
* DHCP Snooping
* IP-MAC-Port Binding
* ARP Inspection
* 802.1x and Radius Authentication
* SSH v1/v2
* SSL v3/TLSv1
* Broadcast/Multicast/Unknown-unicast Storm Control
* Dos Defend
- Management:
* Web-based GUI
* Command Line Interface(CLI) through telnet
* SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
* RMON (1, 2, 3, 9 groups)
* CPU Monitoring
* Port Mirroring
* Time Setting: SNTP
* Firmware Upgrade: TFTP & Web
* System Diagnose: VCT
* SYSLOG & Public MIBS
* Dual Image

OTHERS
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux

- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing

- Package Contents:
* T1500G-10PS
* Power Adapter
* Installation Guide
* Resource CD
* Rubber Feet
